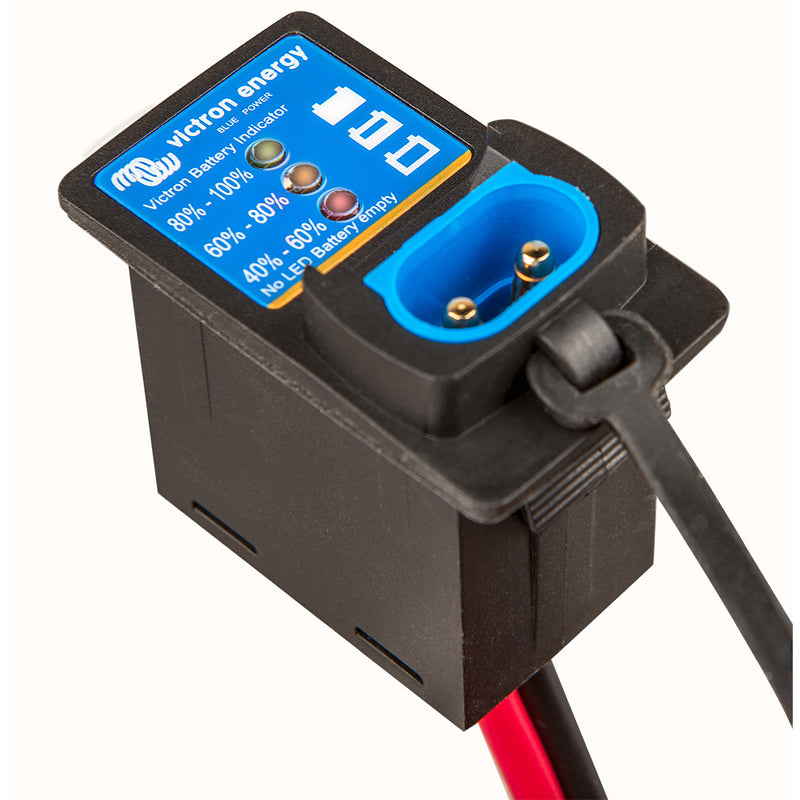

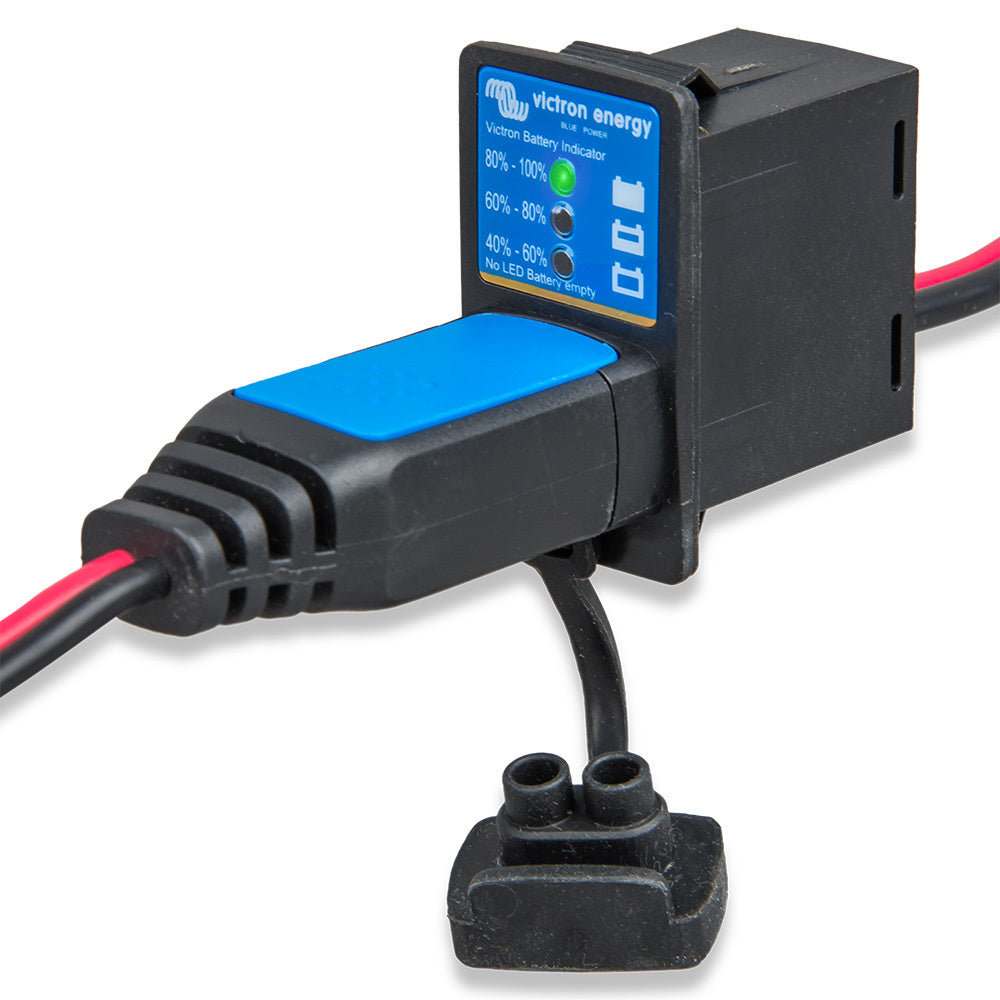

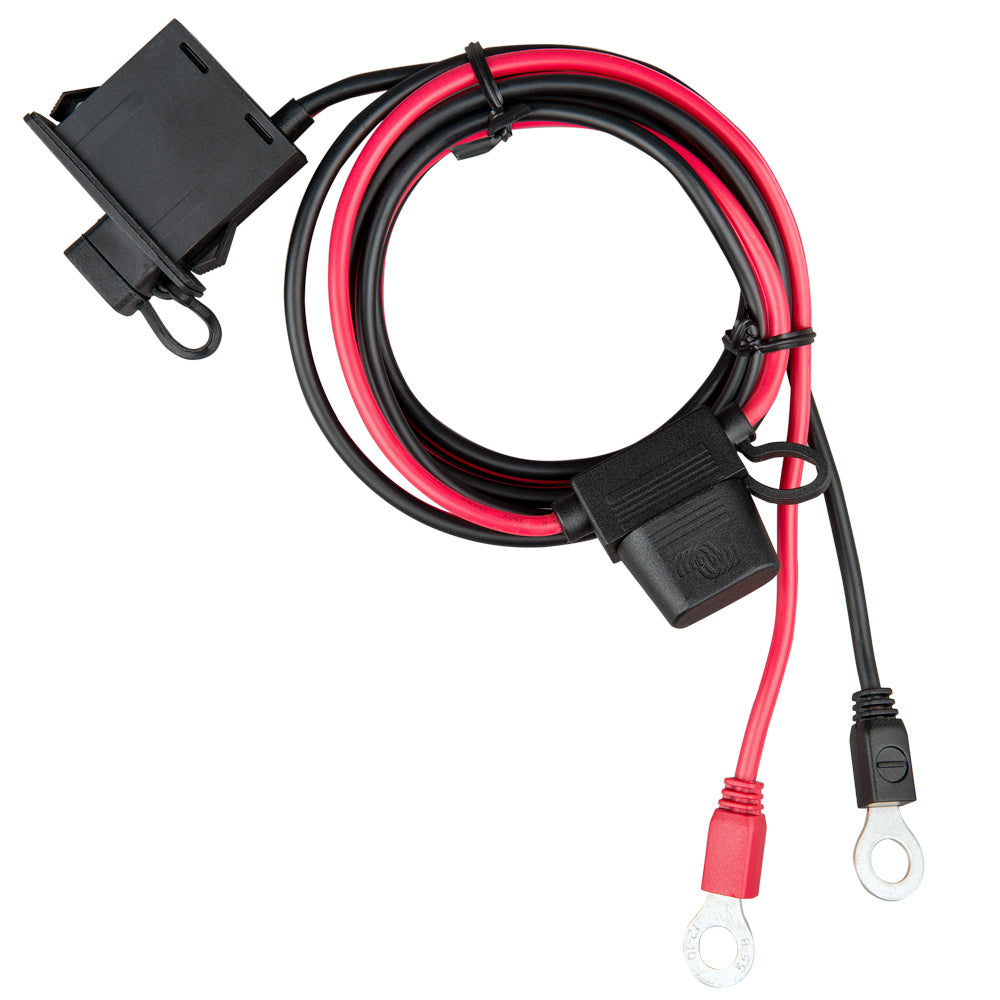

Victron Battery Indicator Panel M8 eyelet connector for Blue Smart IP65 Chargers

Note: Not suitable for 24-volt or Lithium batteries or models over 20A


After using or charging a battery it takes about 30 minutes for the battery to regain its steady state condition and for the panel to show a correct status indication.

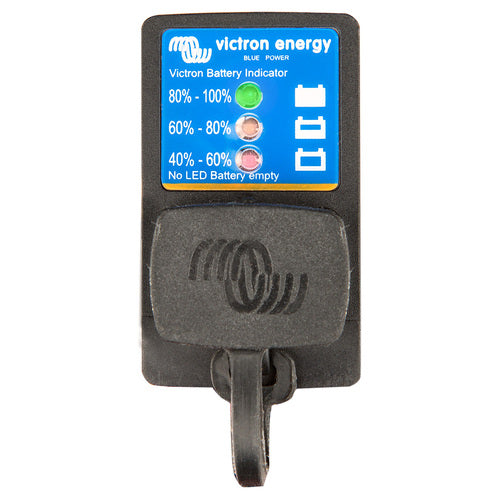

• Green light: Battery does not need to be charged. Battery 80%-100%
• Orange light: Battery can be charged. Battery 60%-80%
• Red light: Battery needs charging. Battery 40%-60%
• No light: charge immediately to prevent sulfation. Battery <40%

Dimensions:

• Front Face - 26mm Wide x 45mm Height
• Panel cut-out - 22-23mm Wide x 40-41mm Height
• Depth - 33mm
