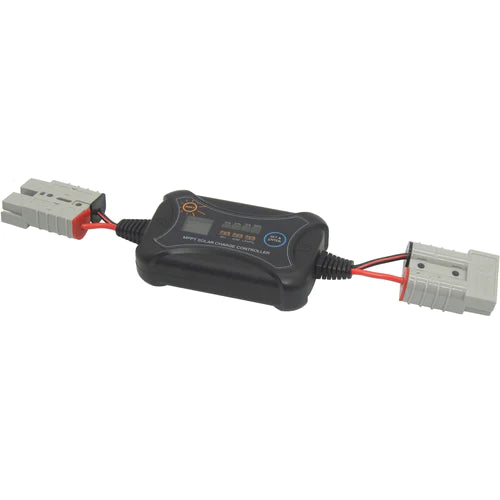

Note: This panel is unregulated, and is supplied with an inline MPPT solar regulator that can be plugged in when you need a regulated panel.
The Blue Apple Mono crystalline portable 110 watt split fold solar panel is made with the highest quality A - grade silicon cells and come with a full 25 year performance warranty and 10 year structural warranty.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 110 watt SPLIT fold has the ability to harness over 6.5 Amps per hour (with an average output of 5 - 6 Amps)

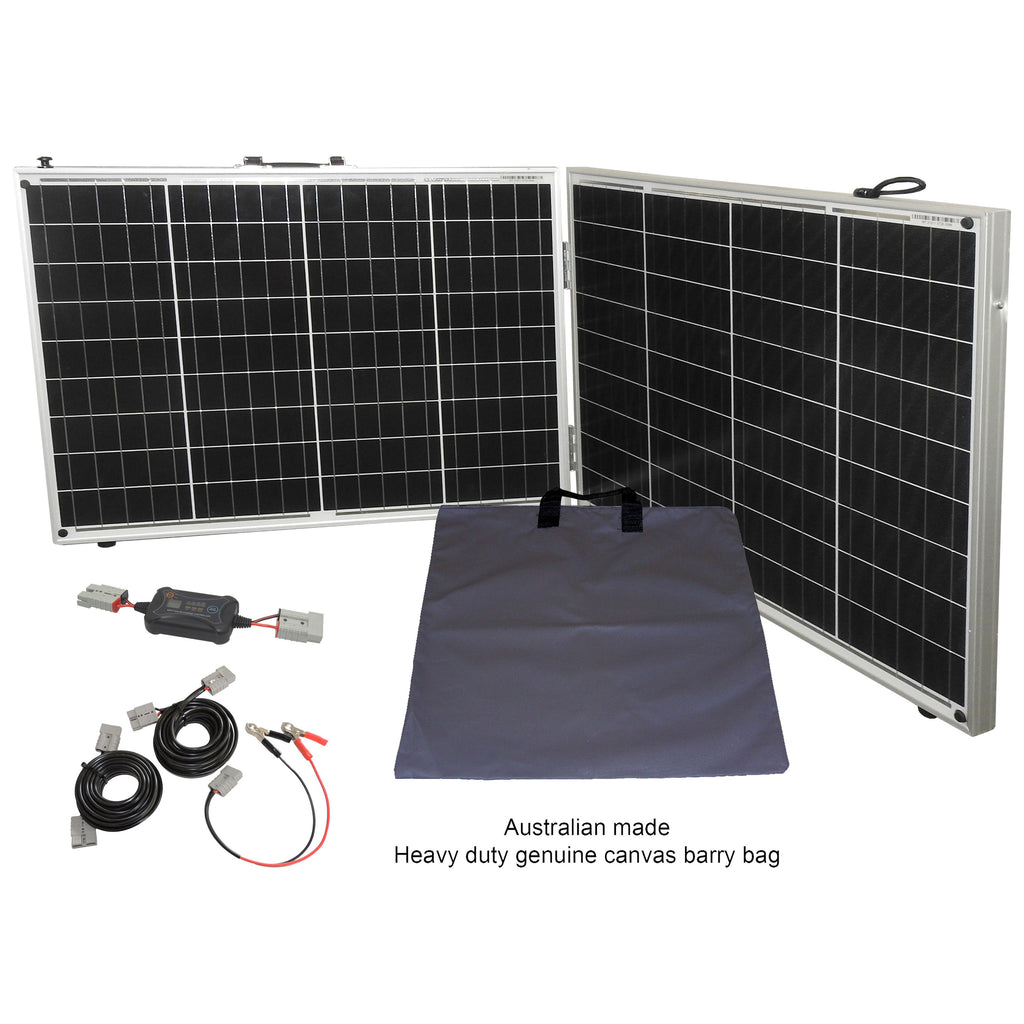

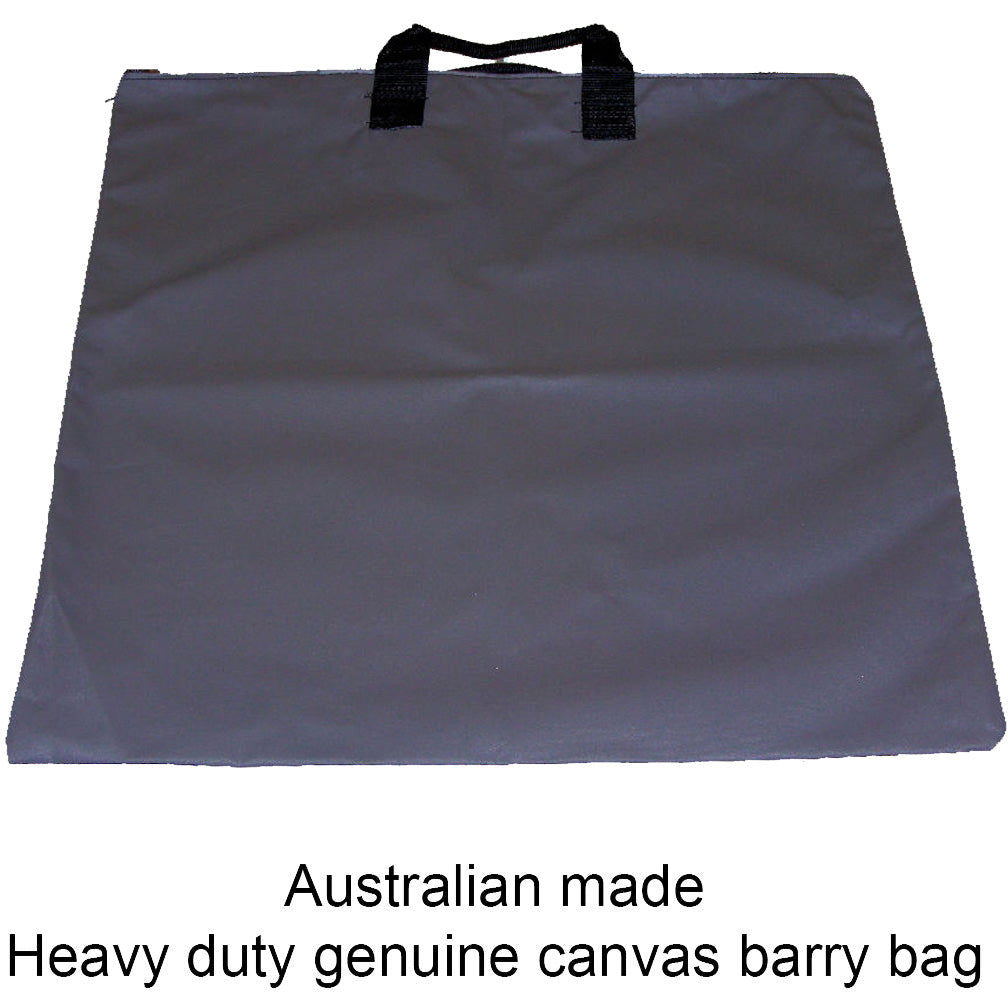

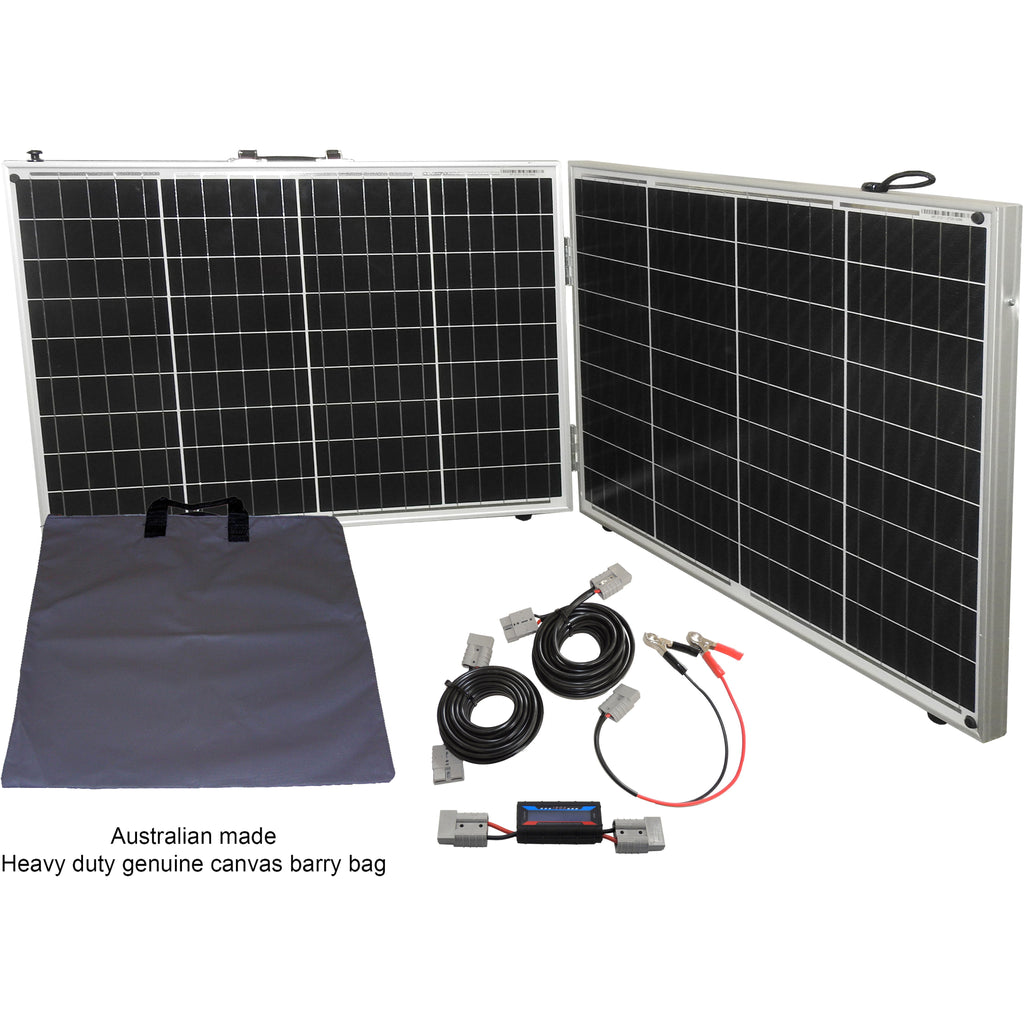

This neat design consists of 2 x 55 watt panels hinged together, so when folded the glass panels will fold in facing one another; adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 110 watt split fold panel CAN produce up to 65 Amps per day! In most cases the 110 watt split fold panel would allow the user to continuously keep up with the draw of a 50-60Lt compressor type fridge (when combined with approx a 60 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel.
**Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 110 watt SPLIT fold has the ability to harness over 6.5 Amps per hour (with an average output of 5 - 6 Amps)
This neat design consists of 2 x 55 watt panels hinged together, so when folded the glass panels will fold in facing one another; adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 110 watt split fold panel CAN produce up to 65 Amps per day! In most cases the 110 watt split fold panel would allow the user to continuously keep up with the draw of a 50-60Lt compressor type fridge (when combined with approx a 60 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel.
**Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
What if you have another regulator you would like to use?
No Problem!

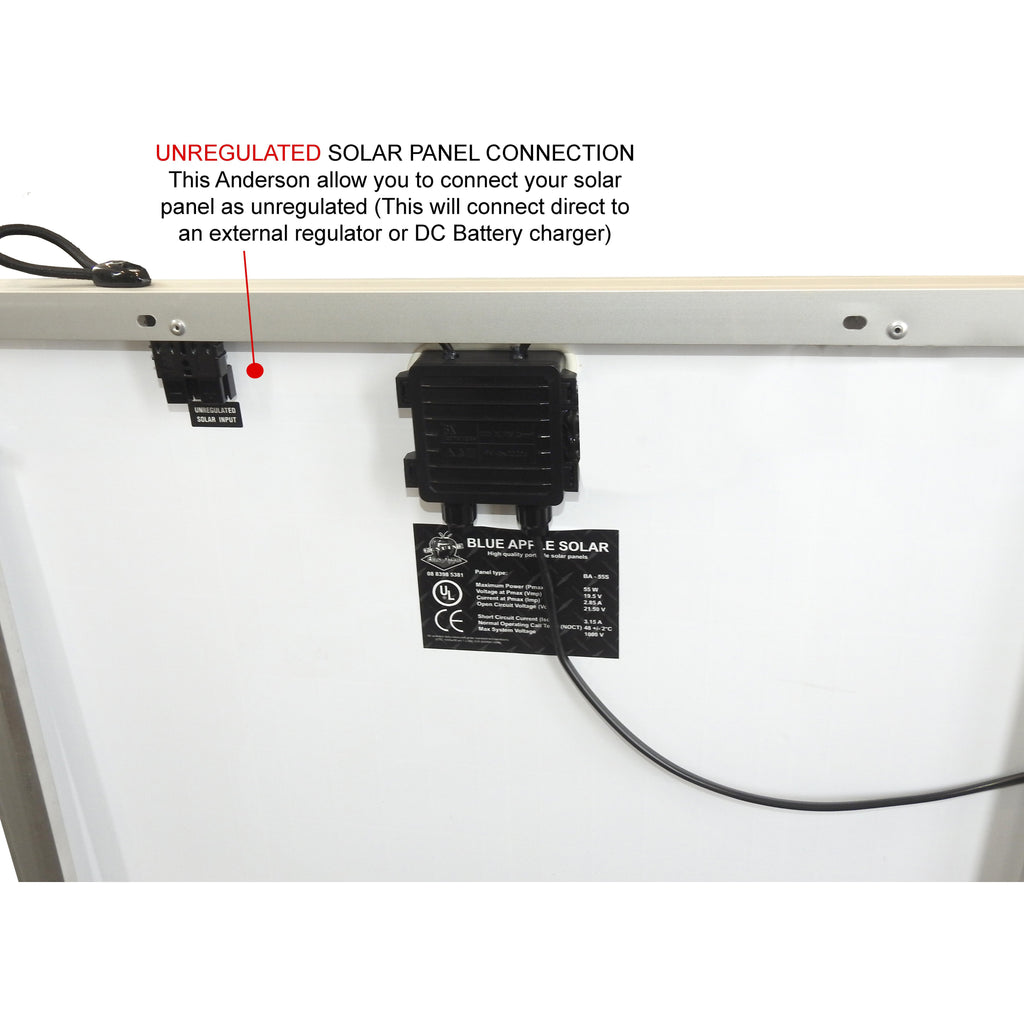

This panel is fitted with a unique UNREGULATED Anderson (Black). This option allows a DIRECT feed to the panel and will allow you to use an external regulator (such as a DC - DC charger!)

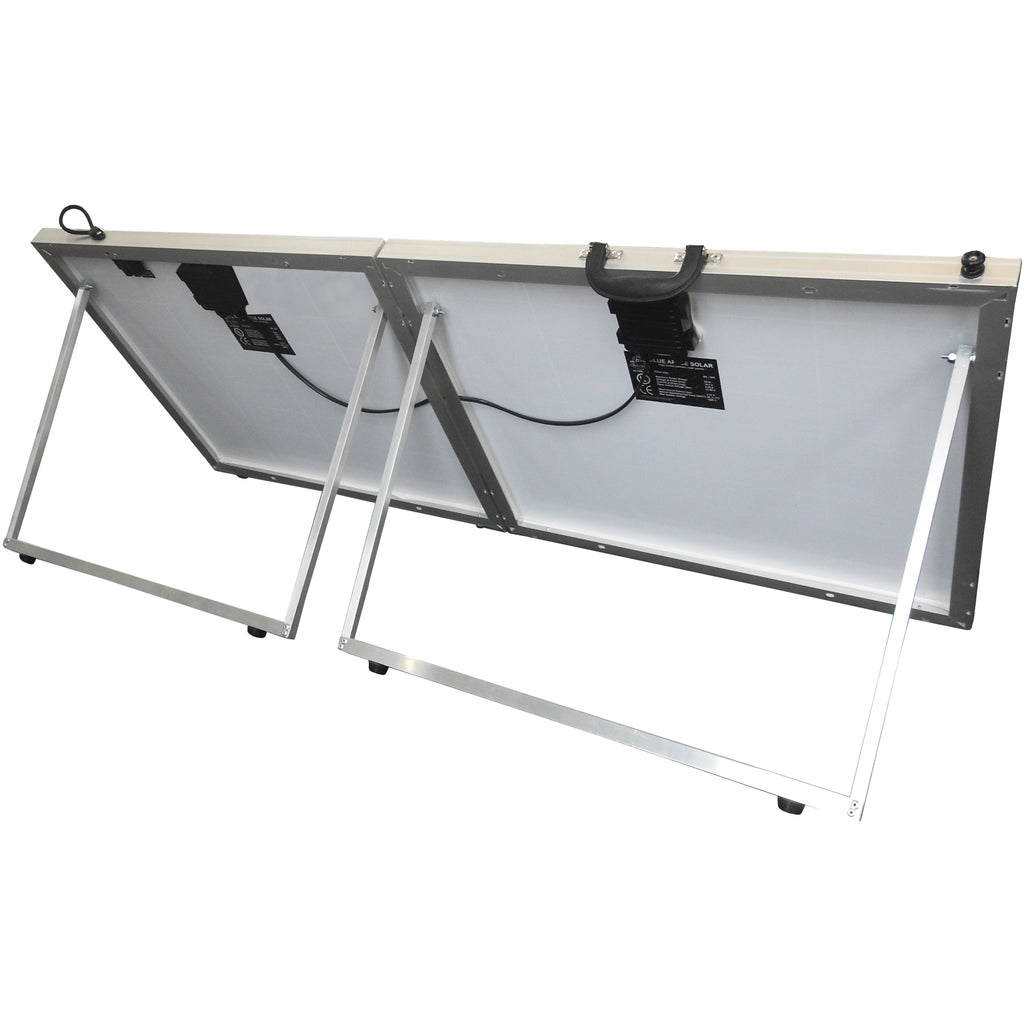

Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
| Panel Type: | BA - 110SF |
| Maximum Power (Pmax) | 110W |
| Voltage at Pmax (Vmp) | 19.5 V |
| Current at Pmax (Imp) | 5.70A |
| Open Circuit Voltage (Voc) | 21.50V |
| Normal Operating Cell Temp(NOCT) | 48±2⁰C |
| Max System Voltage | 1000V |
| Average output per hour | 5 - 6 Amps |
| Warranty | 10 yr structural warranty |
| 25 yr performance warranty |
