Description

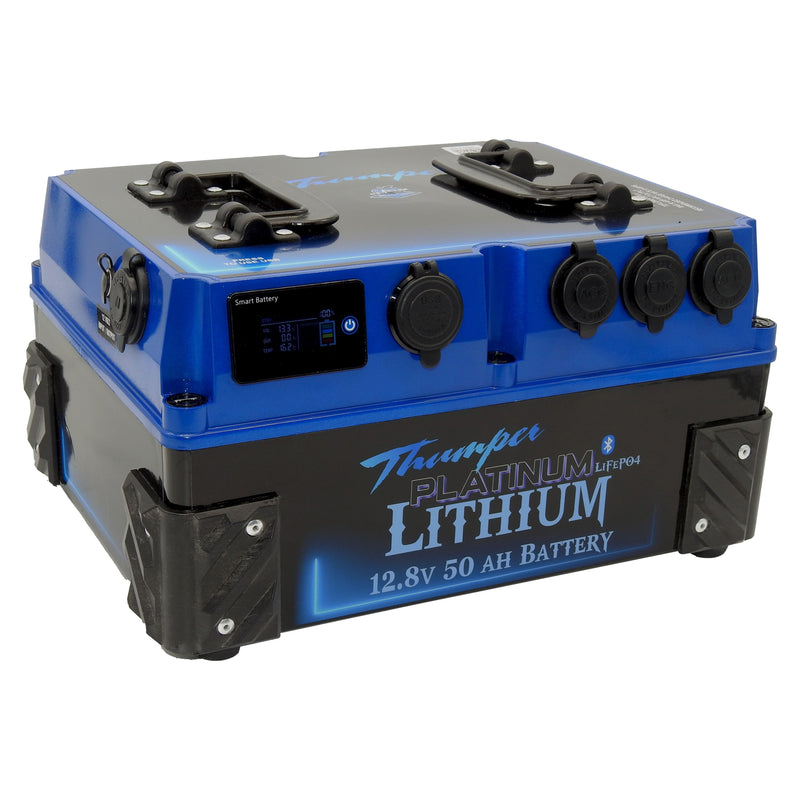

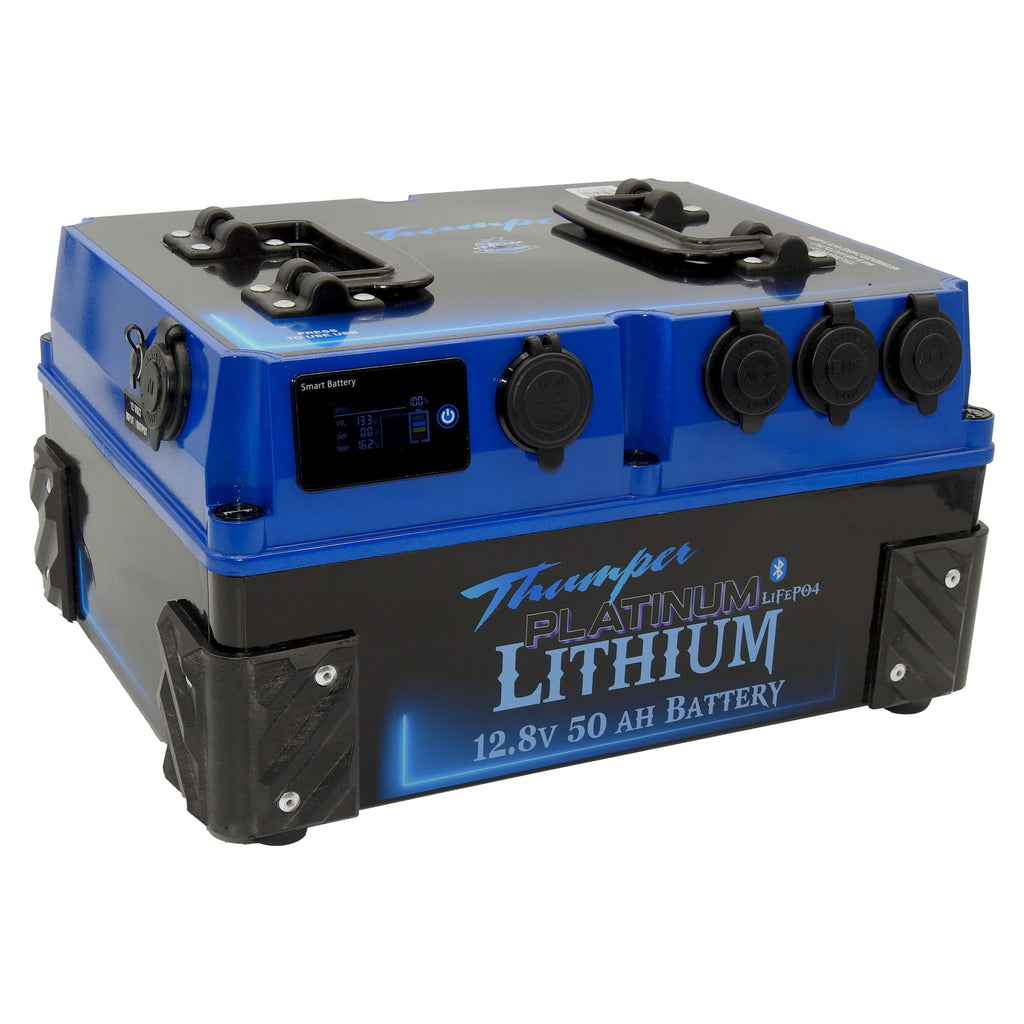

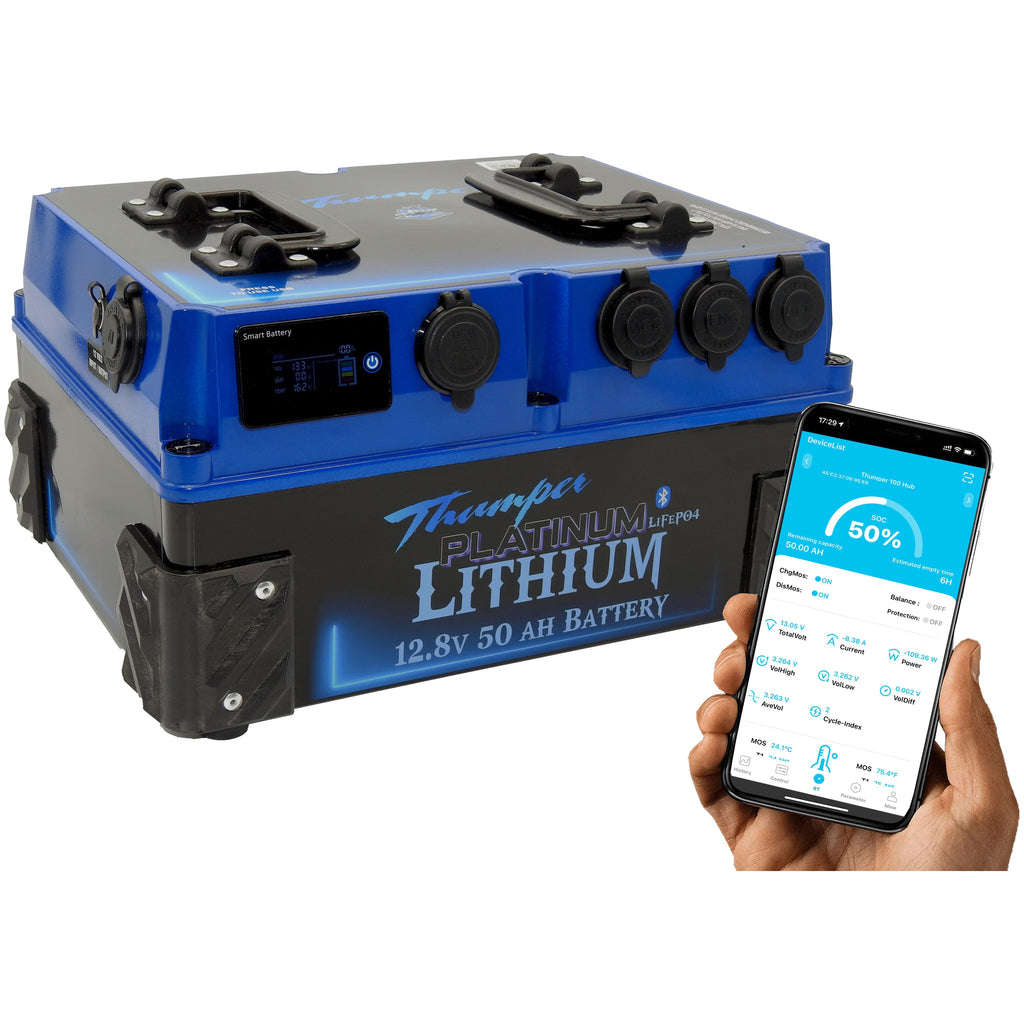

Thumper Lithium 50 AH Battery Pack
The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.
Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.
Equipped with an internal Bluetooth Battery Management System (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and internal short circuit protection.
The Thumper range of Lithium battery packs have a 100% usable capacity. At this point, the BMS system within the Thumper will shut down all power to the unit. In order to reset the BMS, an input charge load must be connected to the battery.
Note: The BATL-50 Thumper Lithium is not suitable for Jump-Starting
_____________________________________

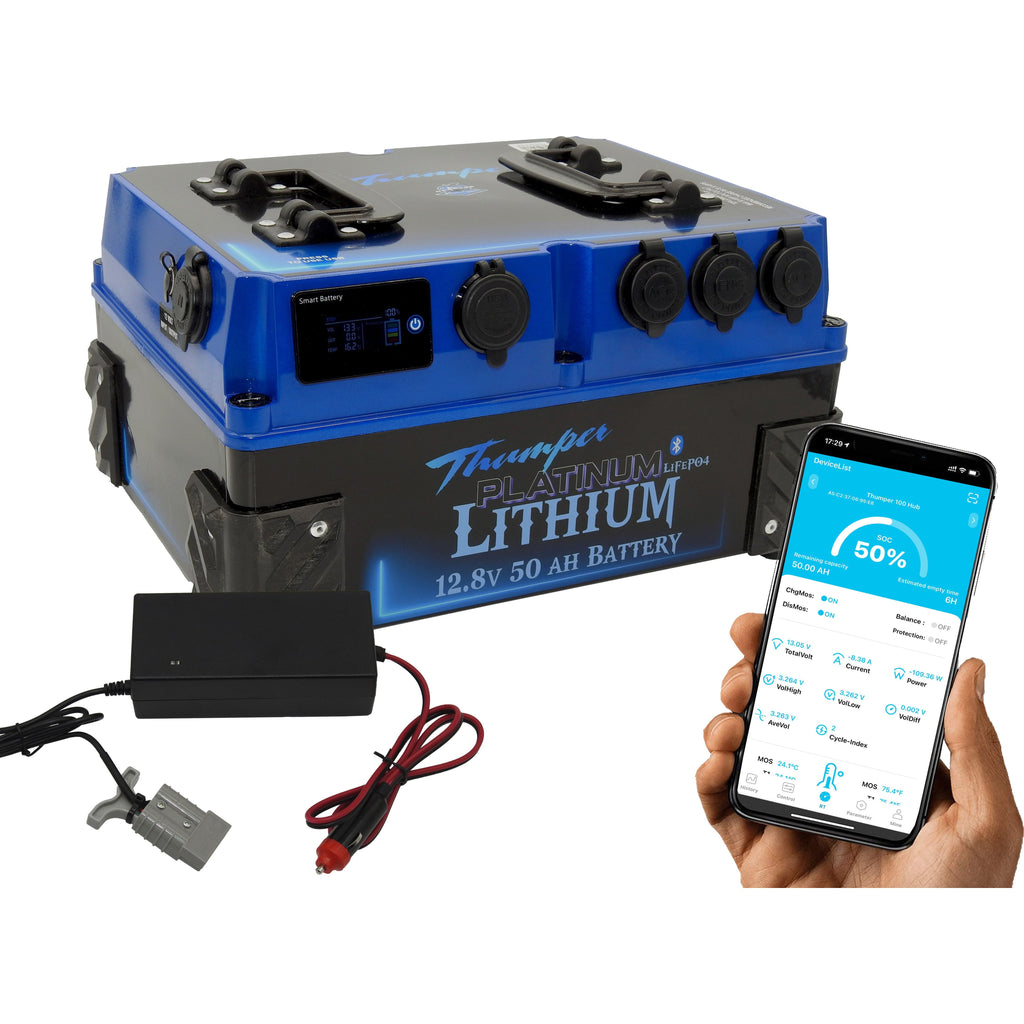

This package includes
| 1 x Thumper 50 AH Battery Pack (battery included) |
| 1 x In line Cigarette socket DC Battery Charger 5 Amp |
| 1 x 240 Volt Battery Charger 10 Amp - dedicated to Lithium charging |
The Thumper Lithium 50 AH is the perfect option for the individual looking to run a 40-50Lt compressor driven fridge for 2 days+
It has never been easier to understand your battery set up! This unit has been fitted with the calibrated digital display screen, providing the user with a complete digital reading of:
Now with BLUETOOTH monitoring and 5 year warranty!
-
- Safe charging and discharging with over temperature protection
- Under voltage cut off protection
- Over voltage cut off protection
- Internal short circuit protection
- Smart Battery Gauge for quick battery reading
- Completely monitored via a FREE Bluetooth app!
- 100% usable battery capacity

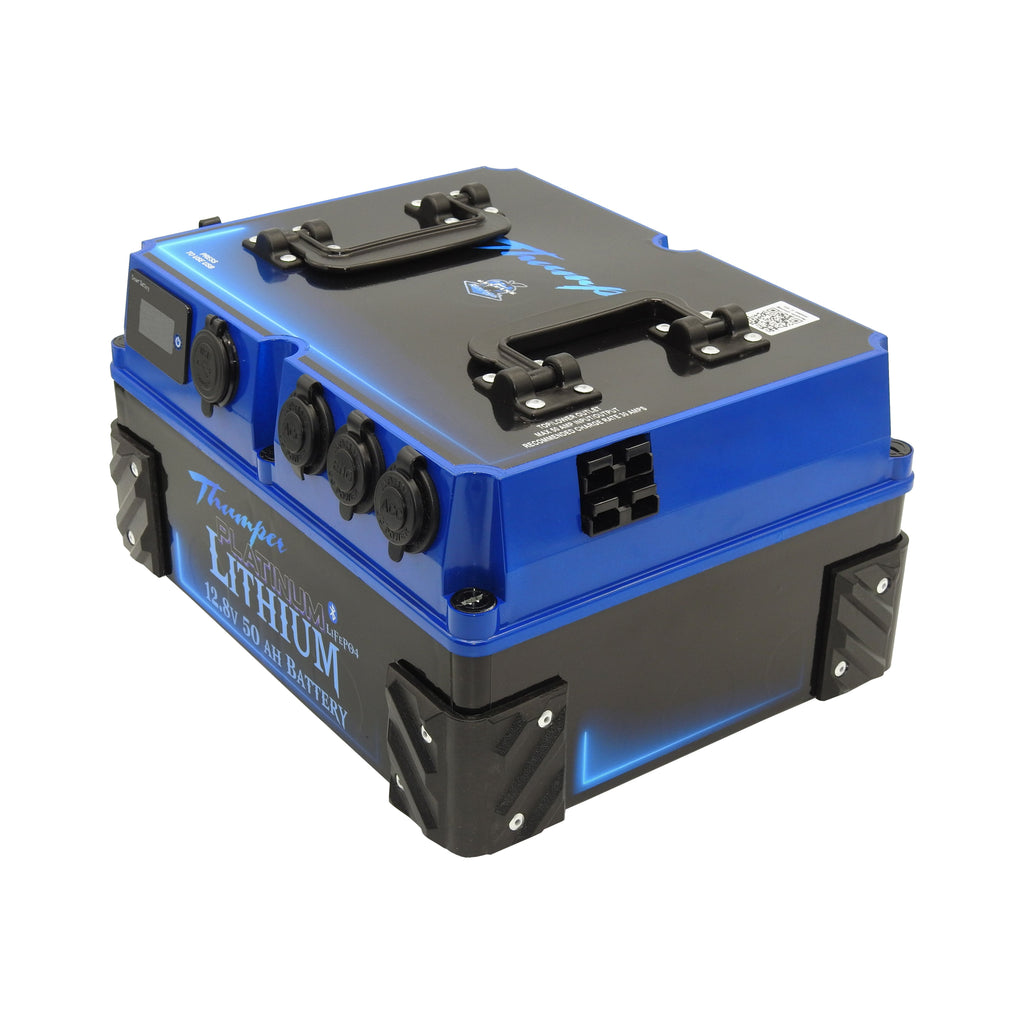

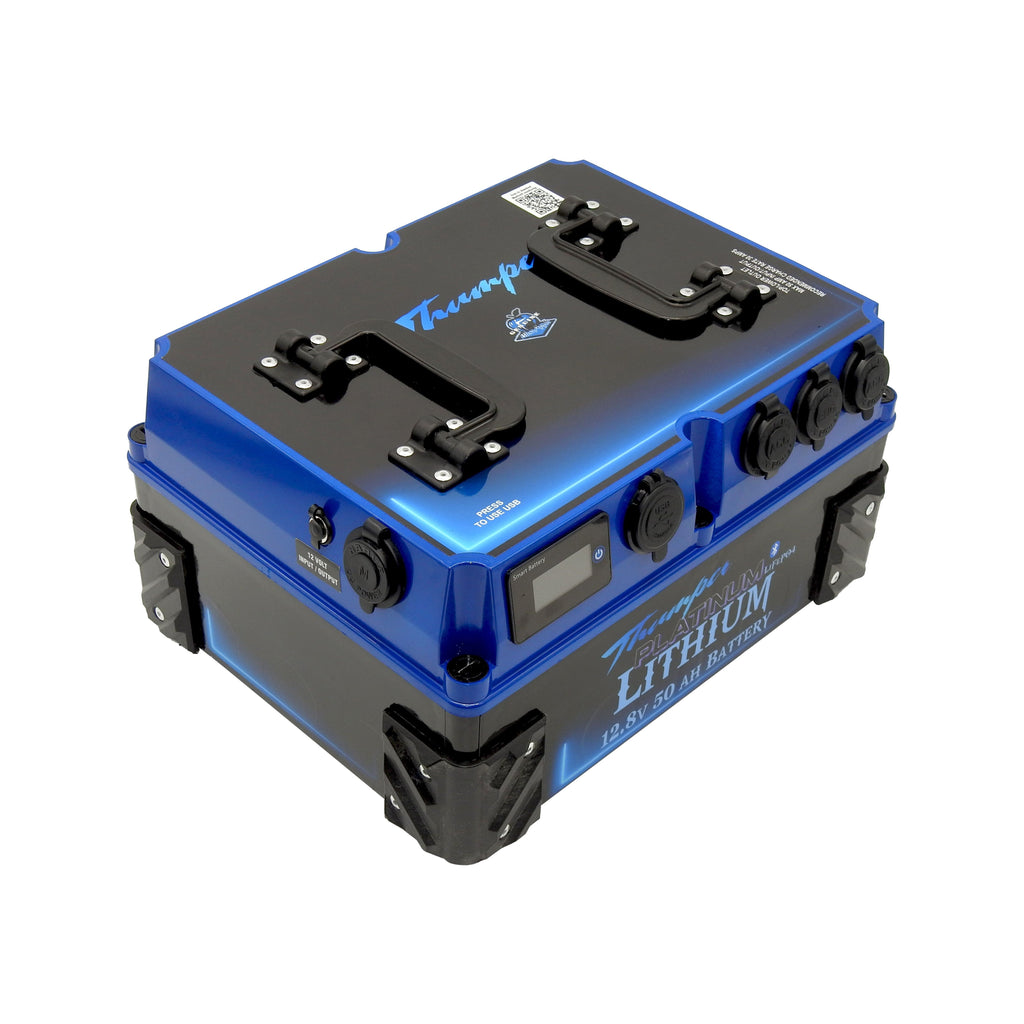

The unit is equipped with:
| 1 x Smart Battery screen | 2 x 50Amp Anderson (Max 50A) |
| 2 x Cigarette socket | 1 x Dual USB socket (2 x 3 Amp) |
| 1 x Engel Fridge socket | Internal circuit breaker protection |
| 1 x Merit type socket | 1 x Carry Handle |
|
Product code |
BATL-50 |
|
Capacity |
50 AH |
|
MAX Discharge |
50 Amps |
|
MAX Input charge |
50 Amps |
|
Dimensions |
335L x 263W x 215H |
|
Weight |
7.10kg |
|
Warranty |
5 years |

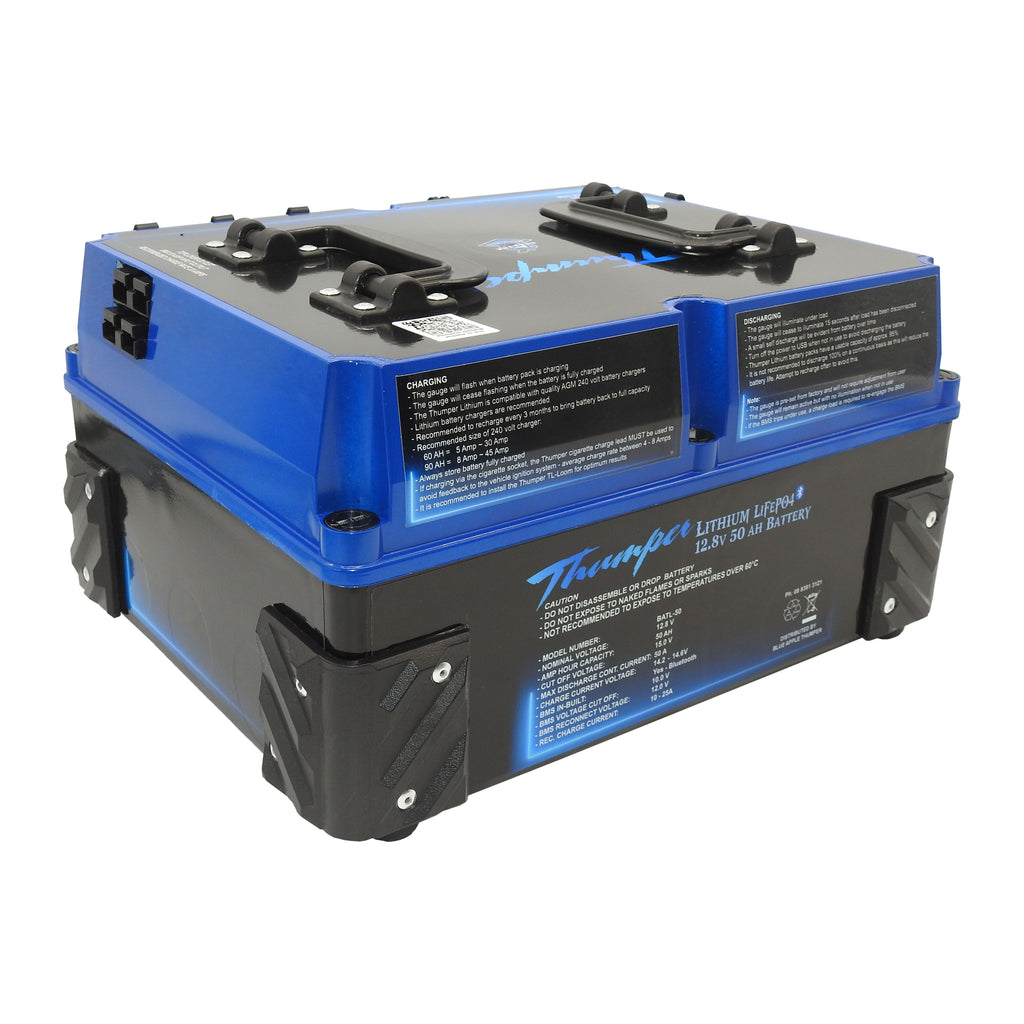

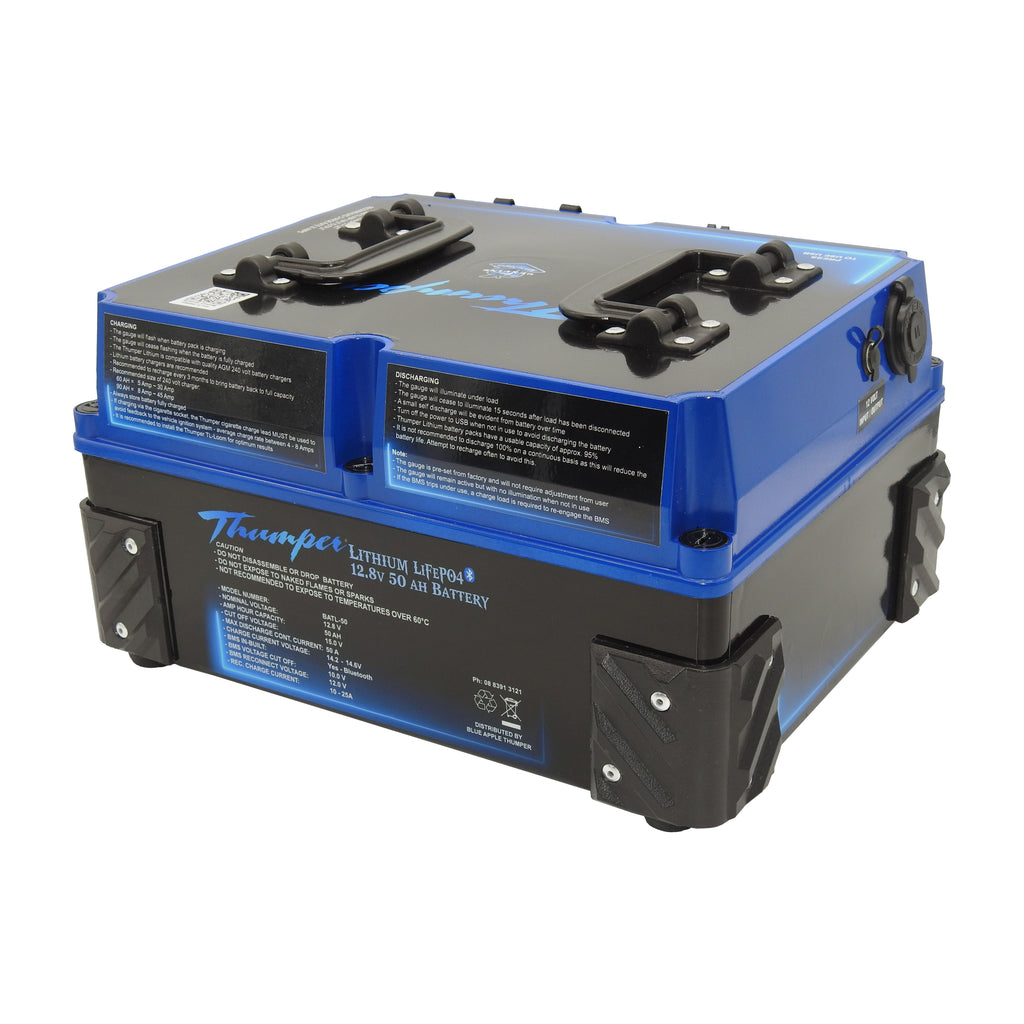

Charging:
The Thumper 50 AH Lithium battery pack includes on purchase a 240 volt 10 Amp lithium dedicated battery charger. The 240 Volt battery charger will allow for an easy connection into the 50 Amp Anderson on the Thumper and offer a complete charge within 5-6 hours.
In addition to the 240volt battery charger, the Thumper 50 AH includes an in line DC charger, rated to 5 Amps. This in line DC charger is designed to connect directly to the vehicle's cigarette lighter socket and will provide an input charge of 5 Amps per hour of drive time back into the Thumper battery pack.
Available to purchase as an optional extra for the BATL-50 is:

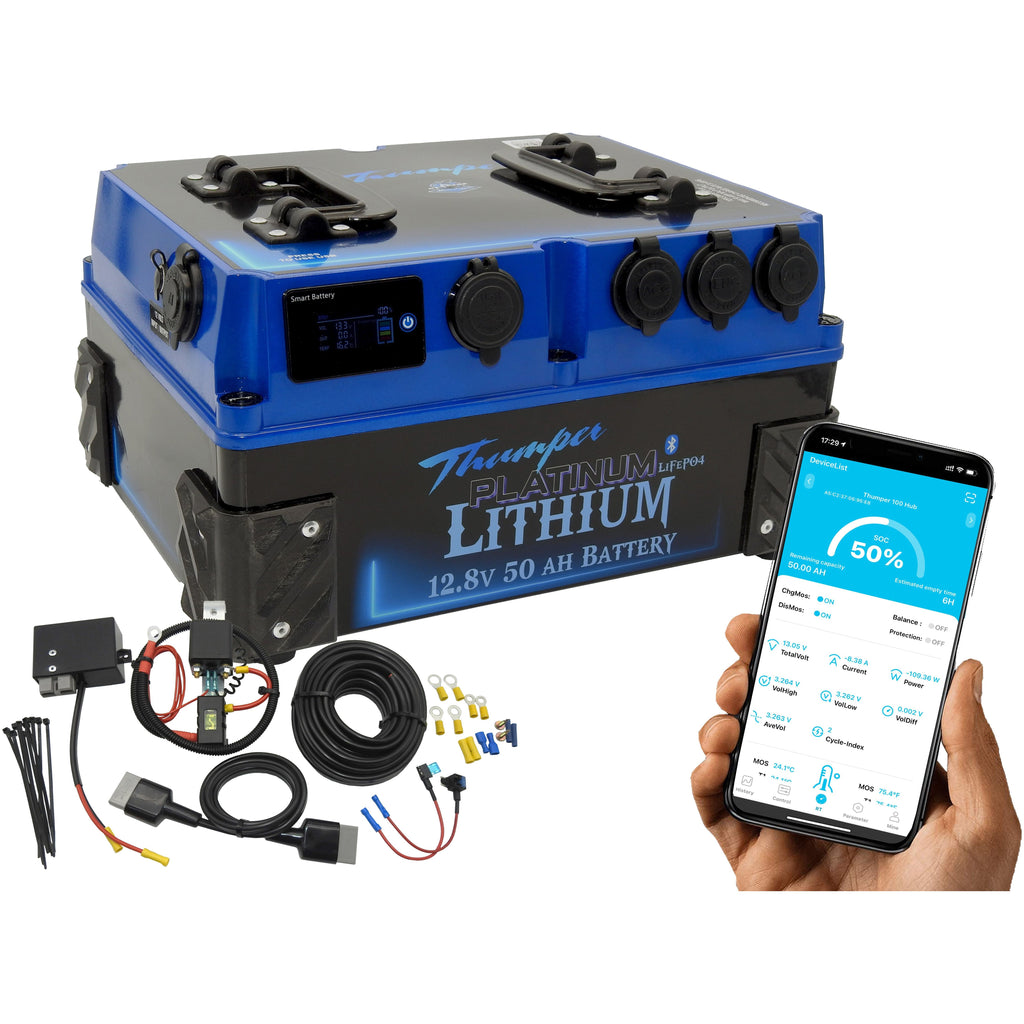

- TUR-L complete vehicle wiring loom
- In line DC battery Charger to increase charge from Cigarette socket - 8 Amps
|
Average run - GUIDE 35 - 50Lt Compressor Fridge 0*C at 25*C Ambient Temperature |
| Capacity | Lithium run time | AGM run time |
| 50 AH | 60 HOURS | 40 HOURS |
| Discharged to 100% capacity at 10.50 Volts | Discharged to 80% capacity at 11.8 Volts |
 |
Bluetooth |
The Thumper Lithium Battery Pack is fitted with one of the most comprehensive Bluetooth monitoring Apps available on the market.
The App offers the ability to monitor and control:
|
|
Thumper offer a number of videos to help explain in more detail the operation of the Bluetooth App, however, a few key points are covered in this listing (videos to be uploaded soon).
For any technical advice regarding the App, we recommending contacting our team direct directly.
Bluetooth App | Home screen - explained:
Bluetooth App | Control Screen - Explained:
The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.
Simply go into the CONTROL panel of your Bluetooth App and press:
CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.
DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
