The Blue Apple Mono crystalline portable 220 watt Split fold solar panel is made with the highest quality A - grade silicon cells and come with a full 25 year performance warranty and 10 year structural warranty.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 220 watt Split fold has the ability to harness up to 14+ Amps per hour (with an average output of 13+ Amps)
This neat design consists of 2 x 110 watt panels hinged together, so when folded the glass panels will fold in facing one another, adding extra protection to the panel. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 220 watt Split fold panel CAN produce up to a massive 140+ Amps per day!
The 220 watt Split fold panel would allow the user to continuously keep up with the draw of an 150Lt compressor type fridge plus more (when combined with approx a 100 Ah+ battery).
The input power of a portable panel is largely dependent on the user of the panel.
Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.

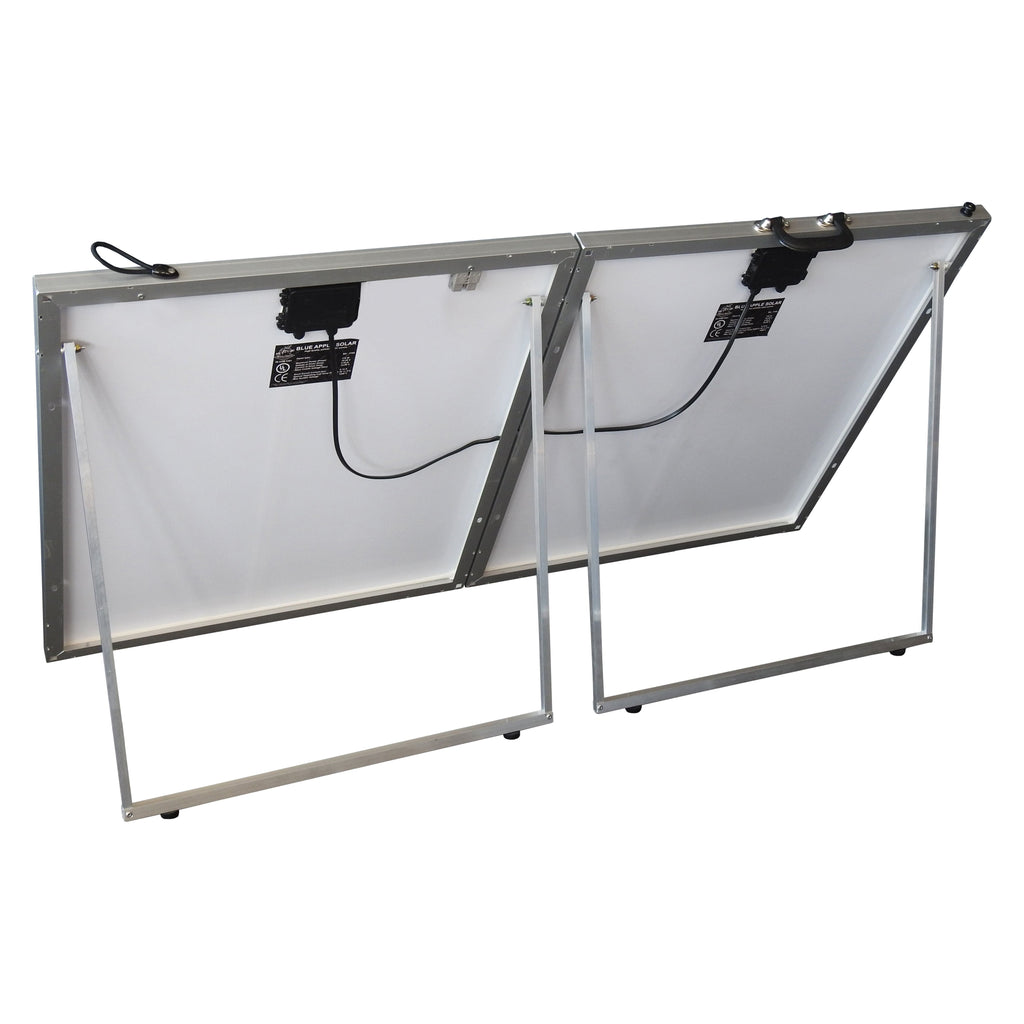

Each panel is equipped with its own set of heavy duty anodized aluminium legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminium leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
BYPASS REGULATOR OPTION:
The 220 watt Split fold panel is fitted with an un-regulated Anderson connector. This connection is linked directly to the panels and will allow the connection of either an IN LINE solar regulator to be used, or a DC Battery Charger.
This package includes an in line solar regulator, which will act to regulate the panel voltage to suit multiple chemistries of batteries, including AGM, GEL and even Lithium! The in line solar regulator will also provide a digital read of out amp input so you can get the most out of your panel when learning how to set the portable panel up.
|
Panel Type Monocrystalline
Panel Code BA - 220SF
Maximum Power (Pmax) 220W
Voltage at Pmax (Vmp) 18.0V
Current at Pmax (Imp) 13.20A
Open Circuit Voltage (Voc) 22.50V
Short Circuit Current (Isc) 12.32A
Normal Operating Cell
Temp(NOCT) 48±2⁰C
Max System Voltage 1000V
|
Package includes:
- 220 watt SPLIT Fold Mono crystalline panel
- In line solar regulator rated to 20Amps

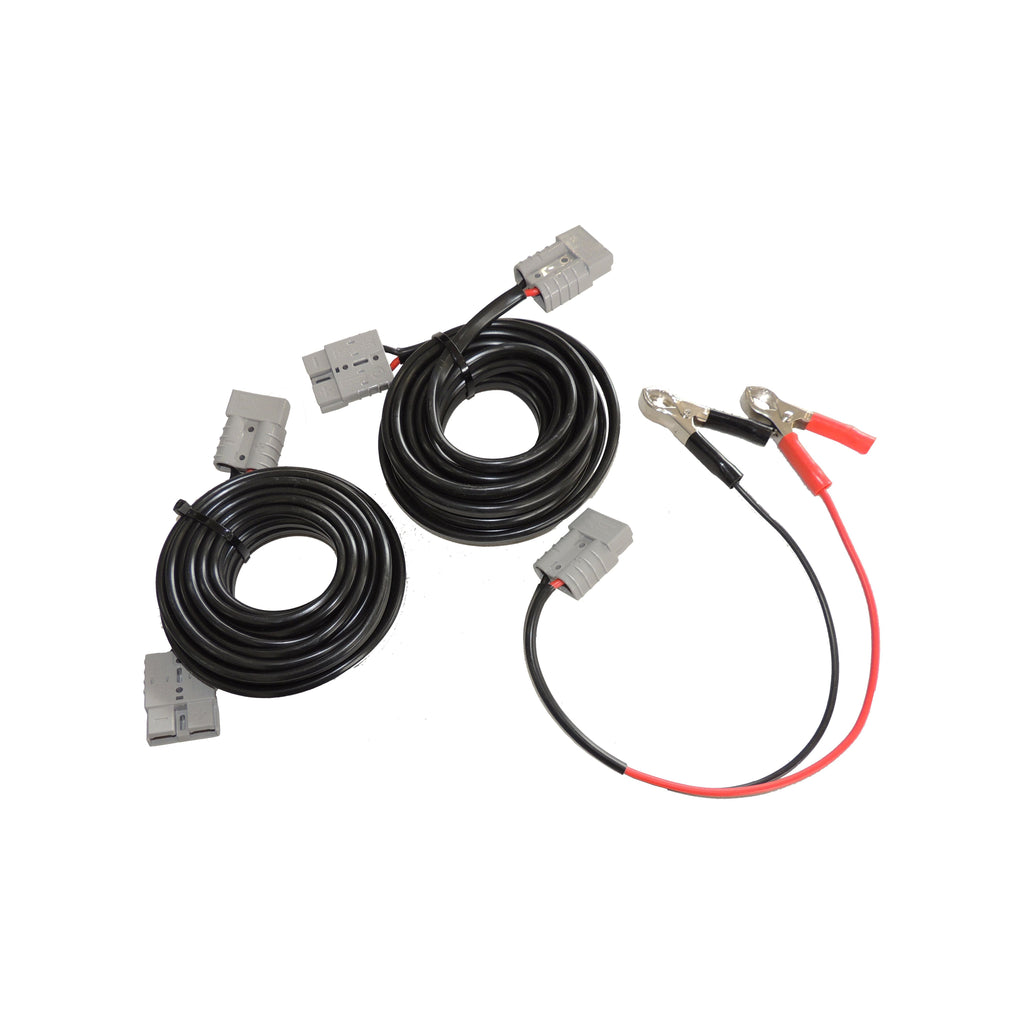

- 2 x 5 meters 6mm Twin core cable with Anderson
- Anderson to Alligator clips
- Heavy Duty Canvas Carry Bag
- Regulated Anderson (Grey)
- Unregulated Anderson (Black)
|
Weight – 11.6 kg
DIMENSIONS - UNFOLDED
Length – 1350mm
Height – 785mm (770mm no handle)
Depth – 30mm
DIMENSIONS - FOLDED
Length - 685mm
Height - 785mm (770mm no handle)
Depth - 65mm
10 Year Structural Warranty
25 Year Performance Warranty
