* Note: This item is not a stock item and may incur 1 - 2 days delay in shipping times

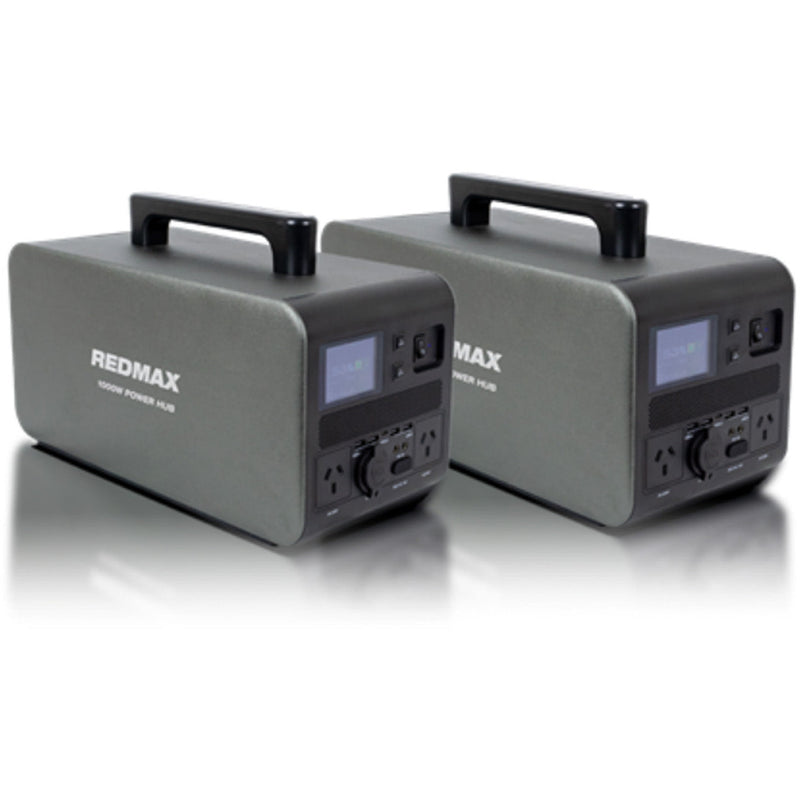

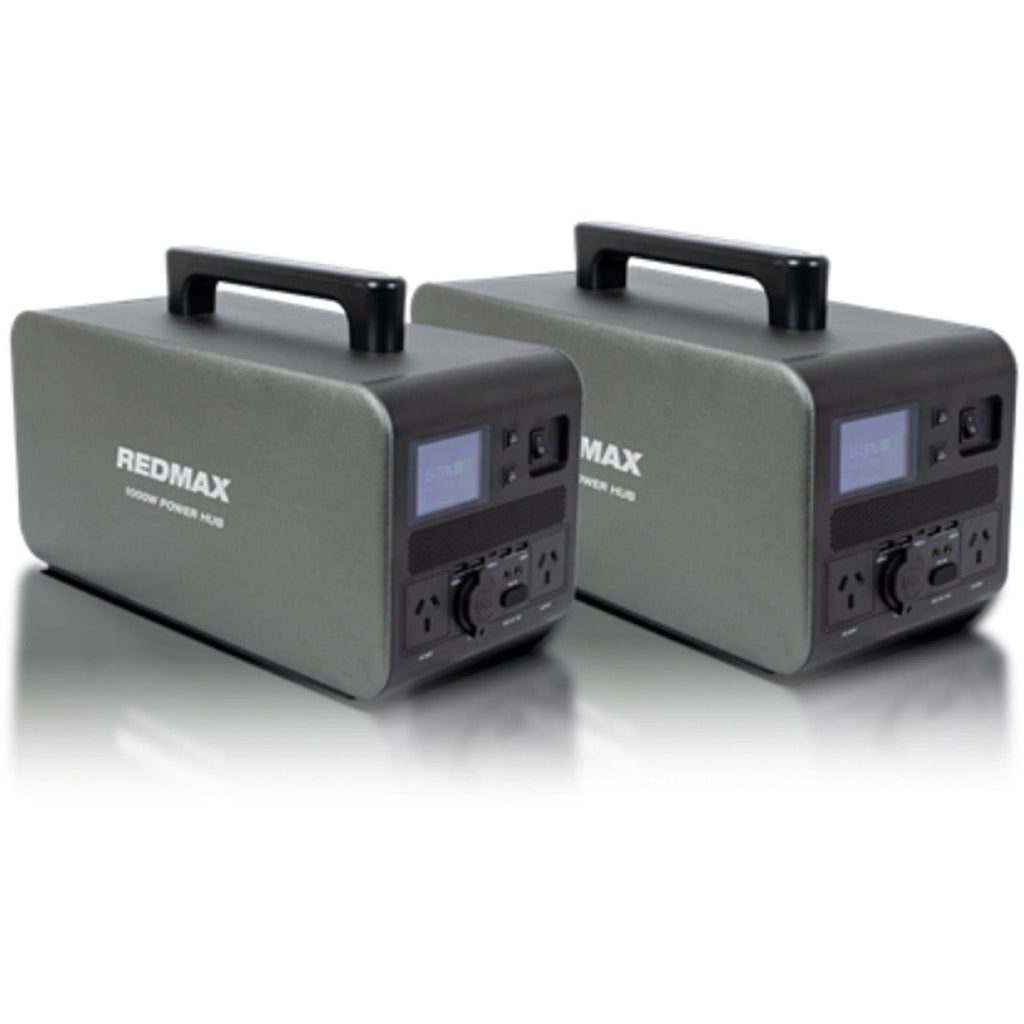

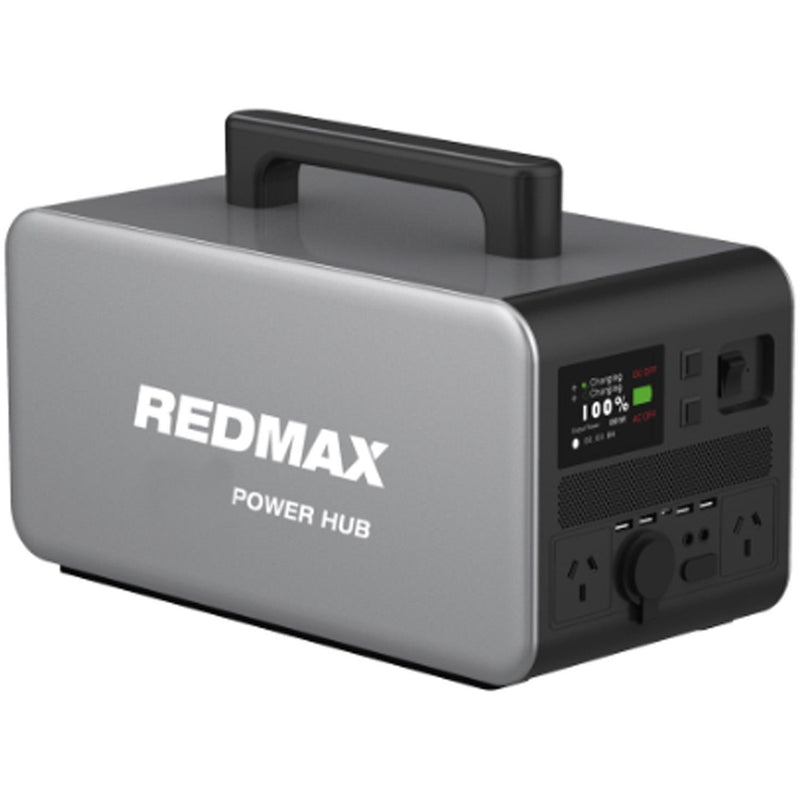

The REDMAX Portable Power Hub is a rechargeable battery powered generator. It contains a rechargeable lithium battery and Battery Management System (BMS) to safely store energy which can then be supplied as either 220VAC for mains powered devices, or as DC voltage for USB & 12V devices.
For charging, it requires a 12V to 30V DC input, which can be supplied using the included AC power supply, a suitable solar panel (200W max.), a vehicle accessory socket or another DC power source.
The REDMAX Portable Power Hub can be used to deliver safe and reliable power for your devices when travelling or camping as well as in emergency situations when reliable power may not be available. The clear display on the front panel shows the battery level and power consumption in real time which enables you to manage and charge the battery when required.
Available in two sizes
SPECIFICATIONS
|
RM1000PH |
RM1500PH |
Battery Capacity (Ah)
|
40.5Ah (25.6V) |
58.5Ah (25.6V) |
Battery Capacity (Wh)
|
1,037Wh |
1,498Wh |
Battery Type
|
LiFePO4 (Lithium Iron Phosphate) |
LiFePO4 (Lithium Iron Phosphate) |
AC Output
|
22VAC, 50Hz, Pure Sine Wave |
22VAC, 50Hz, Pure Sine Wave |
AC Power Continuous
|
1000W |
1500W |
AC Power Peak
|
2000W |
3000W |
DC Output - USB Type A |
18 W Max |
18 W Max |
DC Output - USB Type C |
100 W Max |
100 W Max |
DC Output - 12V 5521 |
12V, 5A (60W) |
12V, 5A (60W) |
DC Output - 12 V Cigarette |
12V, 10A (120W) |
12V, 10A (120W) |
Charging Input |
12V to 30V DC |
12V to 30V DC |
Max. Charging Input Power |
2000W |
2000W |
Suitable Charging Input Type |
240VAC adapter, solar panel, 12V/24V Vehicle |
240VAC adapter, solar panel, 12V/24V Vehicle |
Operating Temperature |
0*C to 40*C |
0*C to 40*C |
Overall Size |
385 x 190 x 245mm |
480 x 190 x 245mm |
Weight |
14.8Kg |
19.8kg |
Package Contents
• 1 x REDMAX Portable Power Hub
• 1 x 240VAC mains battery charger (7909 plug)
• 1 x 7909 solar input cable
• 1 x 7090 to 5521 adapter plug
• 1 x EC5 output cable
• 1 x User Manual
![](https://cdn.shopify.com/s/files/1/0491/2535/9775/files/Screenshot2022-10-06at11-47-36_.cdr-redmax-power-hub-user-manual-v3.pdf_1024x1024.png?v=1665019073)
Will my AC device work with the Power Hub?
First, you need to determine the power consumption of your electronic device. This is normally written on the device and is also specified in the user manual.
You will then need to check the output port you intend to use to ensure that the maximum
power output of the port is greater than the device requirement. If your device uses more power
than the port is able to provide, the power supply will shut off automaticall
Download Manual HERE
Download Brochure HERE
