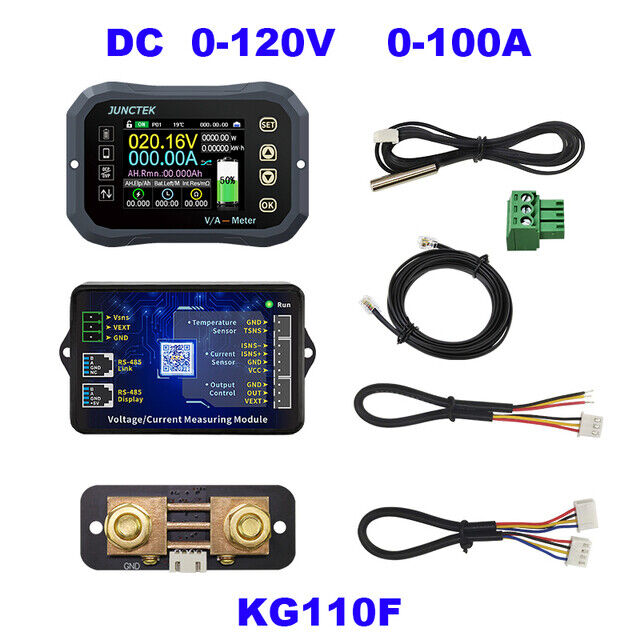

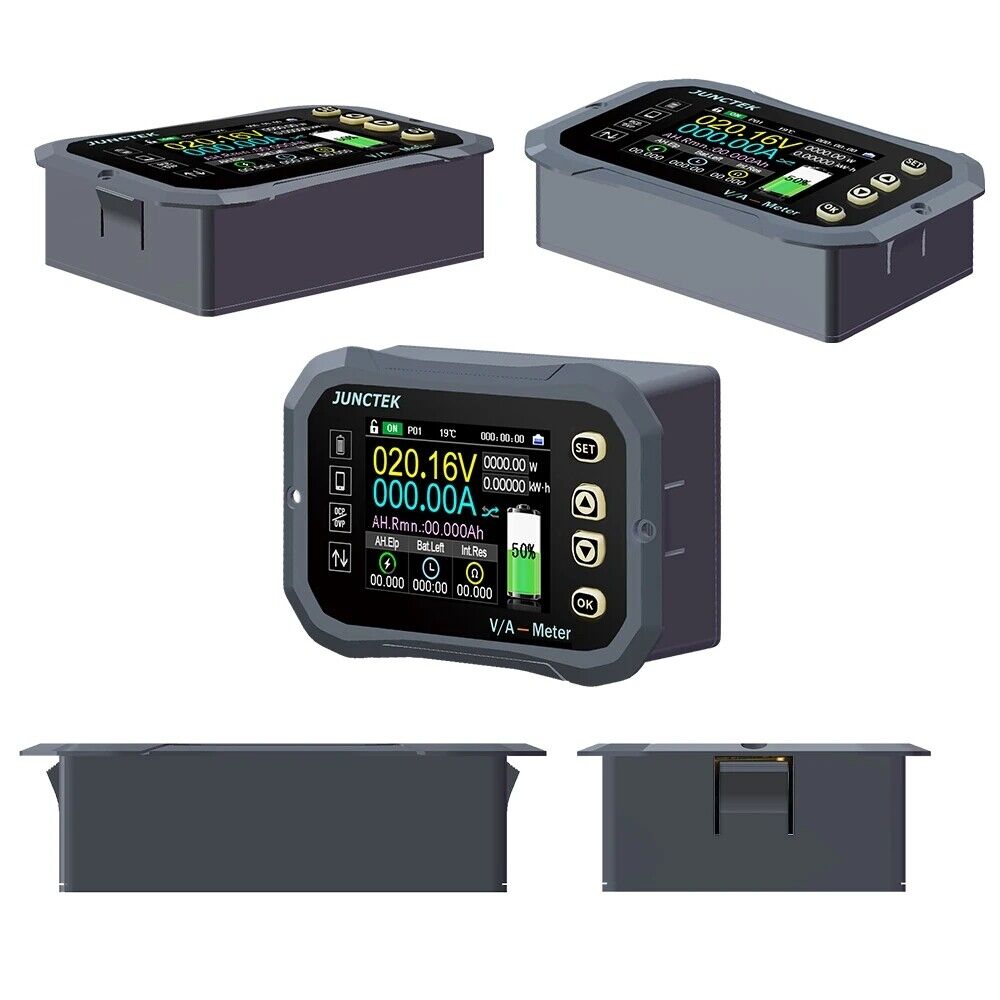

►The display module adopts a 2.4-inch high-definition color LCD screen for clearer display; the buttons are made of silica gel, which increases the comfort of a good feel on the basis of good operation smoothness and fast response speed.
►The product automatically recognizes and detects the current in both charging and discharging directions. When charging, the color of the current in the display module is green; when discharging, the color of the current in the display module is blue.
►Suitable for a variety of batteries: ternary lithium batteries, lead-acid batteries, lithium phosphate batteries, etc., as long as the battery is within the voltage measuring range.

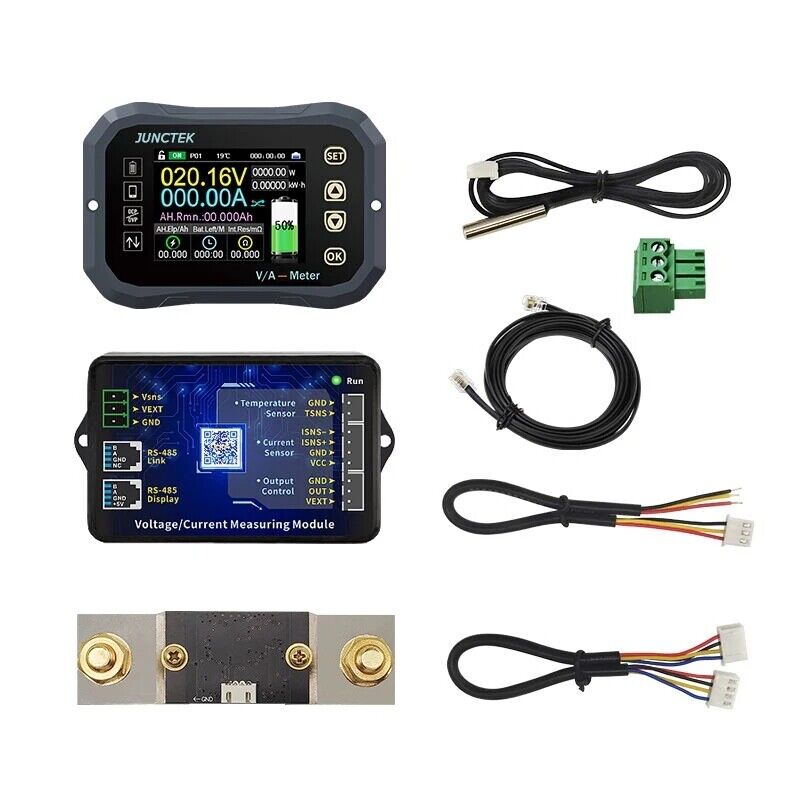

►The shunt and screws are made of pure copper material, which has good electrical conductivity, low heat generation, and low power consumption. In the standby state, it will not consume too much battery power.
►The communication protocol is open source, 485 communication is adopted, and secondary development can be carried out on development tools such as serial port assistant. By switching the communication address, 99 meters can be controlled separately.
►Support mobile APP control. After downloading and installing the APP, connect via Bluetooth, you can view all relevant data and curves on the APP, and you can set all functions through the APP.
►The mobile phone APP has the function of viewing the curve, which can display the real-time curve and historical curve of voltage and current, and also supports the export of historical data.
►The product can be set with over-voltage, under-voltage, over-current, over-power, and external over-temperature protection. When the value is out of the protection value range, the output state of the instrument is turned off (need to be used with a relay) to prevent damage to the electrical equipment. The protection recovery time and delay time can be set, which is suitable for various occasions.
►The product has added a self-calibration function, and the current and capacity values can still remain accurate after long-time work.
►Amp-hour, watt-hour, and time data can be cleared during the measurement process without affecting the next measurement. The voltage and current values can also be fine-tuned to ensure accurate capacity.
Model
|
KG105F
|
KG110F
|
KG140F
|
|
|
Sampling method
|
Shunt
|
Shunt
|
Shunt
|
|
|
Voltage measurement range(External power supply)
|
0-120V
|
0-120V
|
0-120V
|
|
|
Voltage measurement
range(Self-powered)
|
10-120V
|
10-120V
|
10-120V
|
|
|
Voltage resolution
|
0.01V
|
0.01V
|
0.01V
|
|
|
Current measurement range
|
0~50A
|
0~100A
|
0~400A
|
|
|
Current resolution
|
0.01A
|
0.01A
|
0.1A
|
|
|
Relay
|
optional
|
Temperature measurement range
|
-20-120℃
|
Capacity display range
|
0%~100%
|
Power measurement range
|
0~72KW
|
Power resolution
|
0.01W
|
AH measurement range
|
0~9999.99AH
|
Capacity resolution
|
0.001AH
|
Watt-hour measurement range
|
0~9999.99kWH
|
Watt-hour accuracy
|
0.001WH
|
Time measurement range
|
0~999:59:59S
|
Time resolution
|
1 second
|
Bluetooth communication distance
|
10m
|
Voltage accuracy
|
±2%+3 characters
|
Current accuracy
|
±5%+10 characters
|
Sampling rate
|
1time / second
|
Measuring module
power consumption
|
About 0.4W
|
Display module power consumption
|
About 0.5W
|
Over power protection
|
0-99999.99W
|
Negative overcurrent protection
|
0~50A/100A/400A/600A
|
Forward overcurrent protection
|
0~50A/100A/400A/600A
|
Overvoltage protection
|
0~120V/600V
|
Undervoltage protection
|
0~120V/600V
|
External over temperature protection
|
0-120℃
|
Protection recovery time
|
0-99s
|
Enter standby time
|
0-60s
|
Delay time setting
|
0-99S
|
|
|
