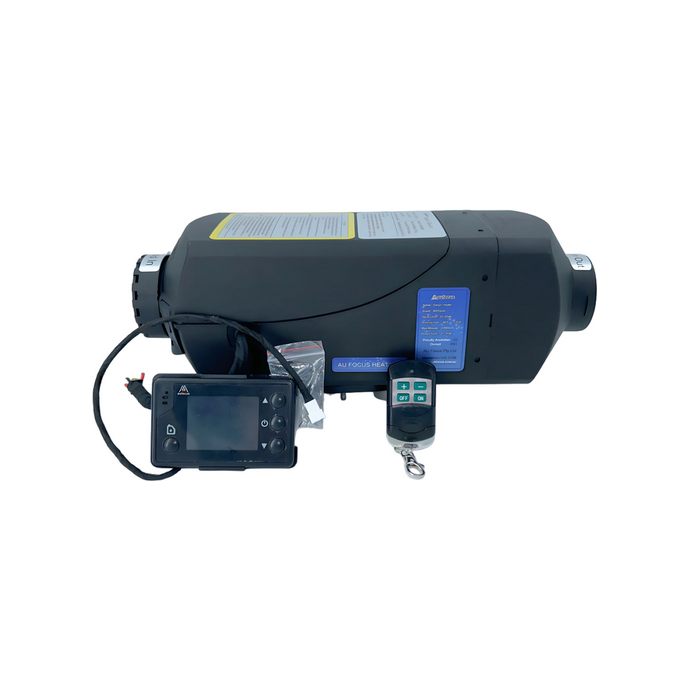

AU Focus 2KW ML Voice Diesel Heater Kit - 4th Gen

This Premium Quality AU Focus Diesel heater is backed by a 24 month warranty.

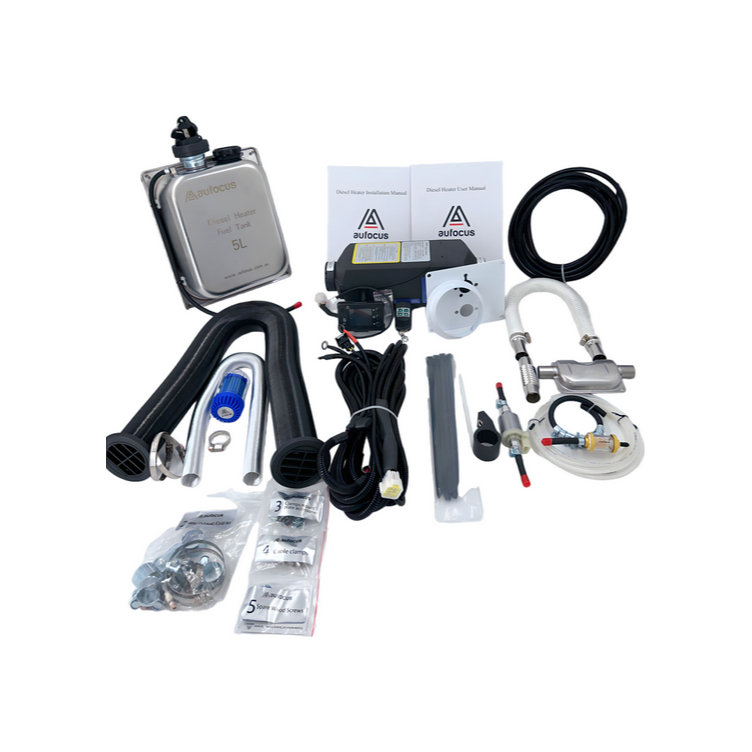

What's Included:

• Easy DIY Installation manual - Best on the market!

• Easy to read user manual

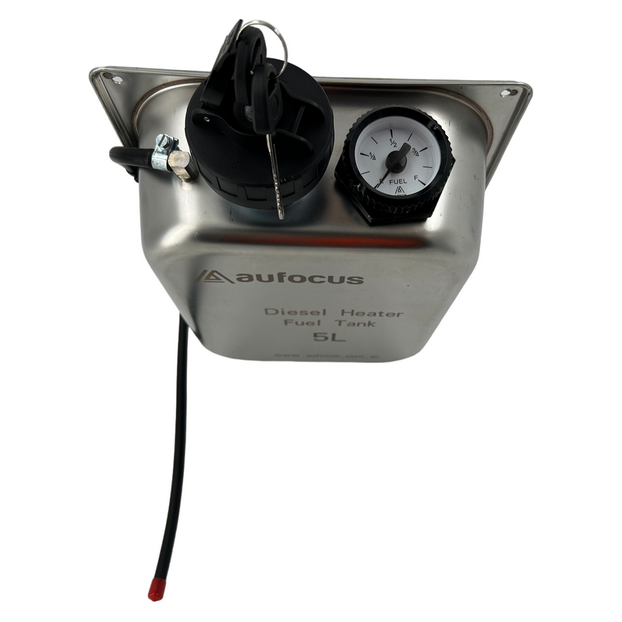

• 5L Stainless Steel Fuel Tank with top mount dial fuel level gauge, fuel pickup and lockable fuel cap

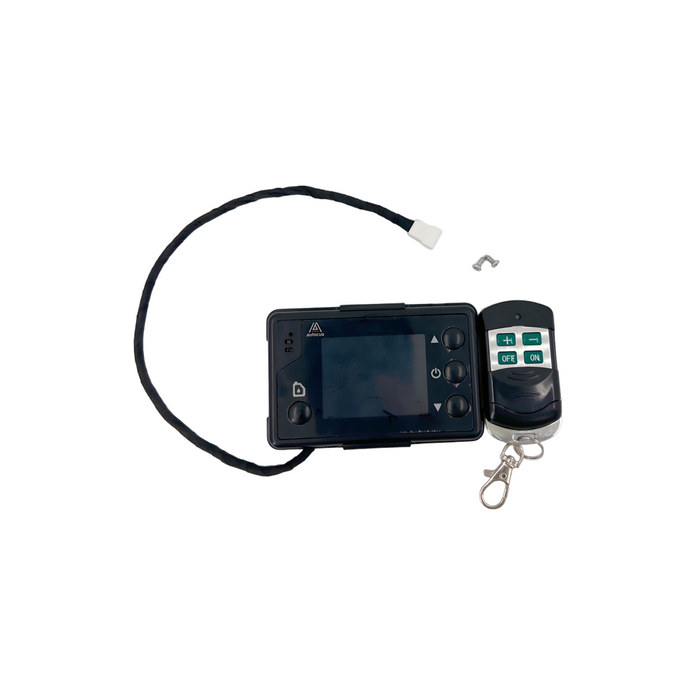

• LCD panel with remote control plus has a voice feature which tells you when the unit is switched on or off and also tells you what errors you may be experiencing. (This feature can be switched off)

• Solid construction - high grade heat resistant hard casing

• Flat vents

• Super quiet fuel pump

• PA66 hard nylon fuel line 6m (size:4*1mm(thickness)) and good quality black rubber connectors.

• 5m of 2.5mm wire core power cable with flame retardant conduit and Anderson Plugs for optional use

• The entire wiring harness is covered in high quality with conduit.

• High quality air filter

• High quality reusable fuel filter made with alloy top and base.

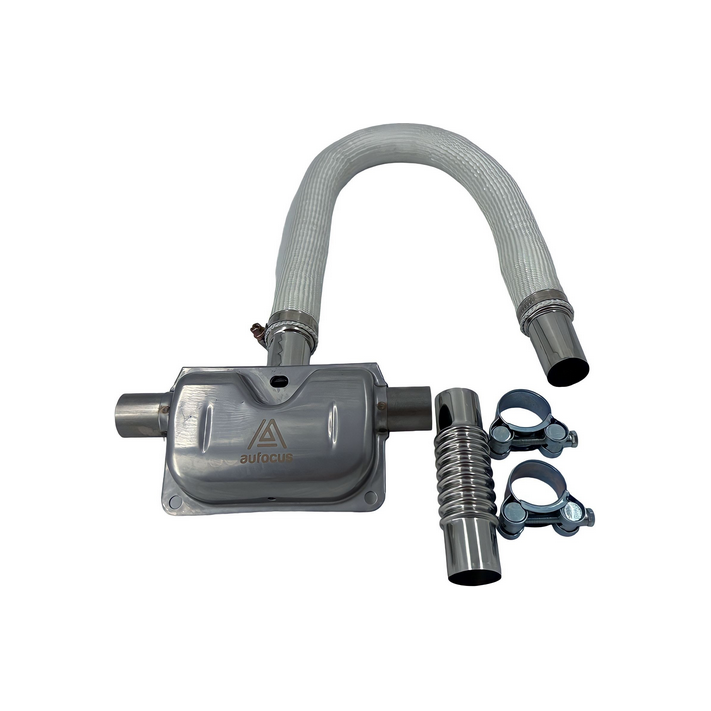

• High quality exhaust, muffler and exhaust tip with fire proof sleeve.

• Flame retardant Exhaust sleeve is included with clamps to secure it.

• Solid mounting plate with mounting flange to protect the caravan floor.

• High grade plastic cable ties

• High quality clamps and other accessories required for a complete installation.

Features:

• RCM Certification

• Small and compact design for an easy space-saving installation

• Voice LCD panel with remote control - Also features, temperature, a voltage meter, etc

• Sensors on both the control board and fan for additional safety protection

• High and Low Voltage & Current protection

• Fast heat up time and maintains a consistent temperature

• Auto cool down process when powered off

• Low fuel consumption

Specifications:

• Power: 1KW-2KW Adjustable

• Fuel: Diesel only

• Rated Voltage: DC 12V

• Fuel Consumption(L/h): 0.1-0.3

• Working Temperature: -40℃~+50℃

• Working Temperature of the Oil pump: -40℃~+40℃

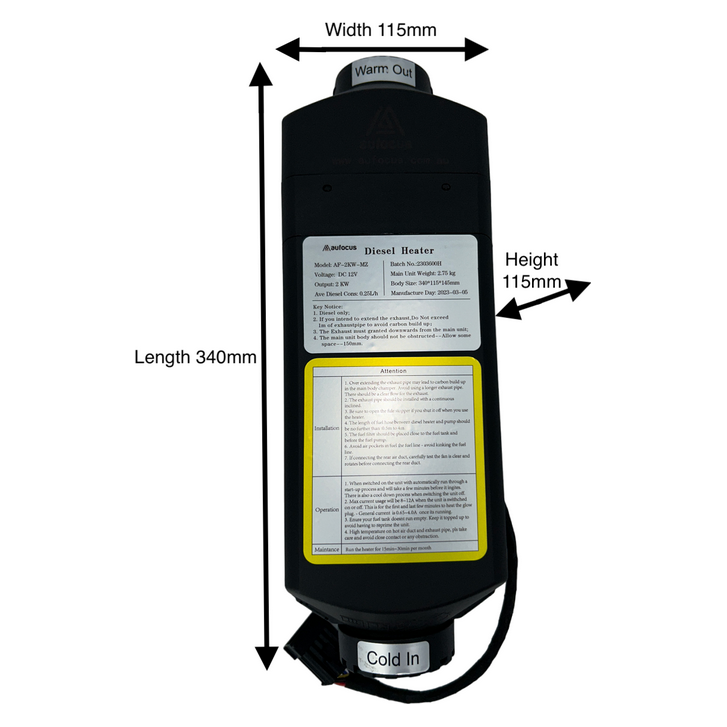

• Main Unit Size: Length 340mm* Height 115mm* Width 115mm*

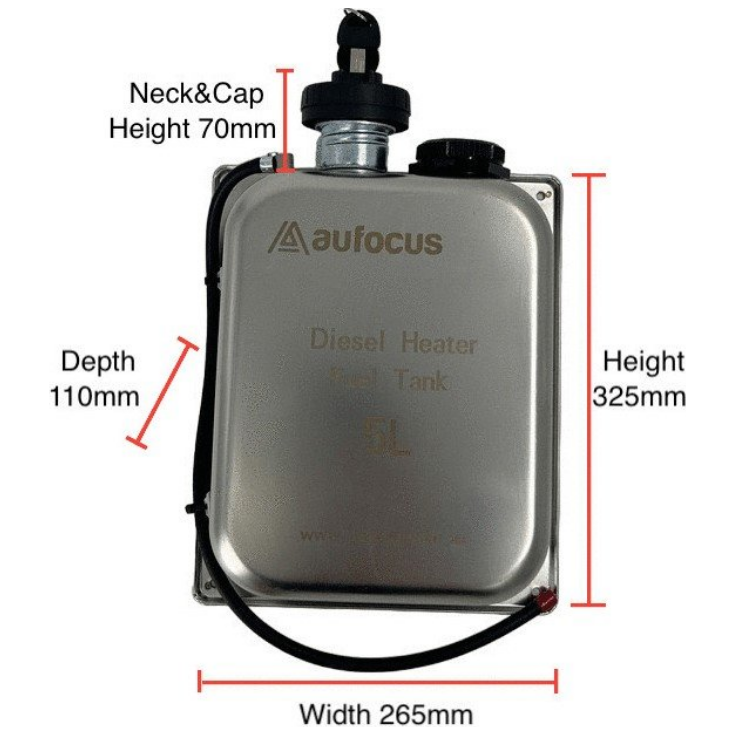

• Tank Size: Depth 110mm* Height 325mm* Width 265mm* Neck&Cap Height 70mm*

• Black flame retardant plastic casing (Top Grade)

• Voice / LCD - Can display Error Codes on the LCD screen for easy troubleshooting if required

• Power (5~35w/h). peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.

Contents List

User Manual

Installation Manual
