Home of 12 Volt offers an extensive range of power packs, control boxes, cables and accessories to help with all types of 12 volt installations.
All control boxes are internally soldered and wired with 4mm and 6mm automotive twin sheathed oxygen free cable. These quality control boxes will truly last the test of time and will not tarnish (go green) after many years of use in harsh environments. The use of oxygen free cable means that voltage drop will be greatly reduced when using these control boxes.

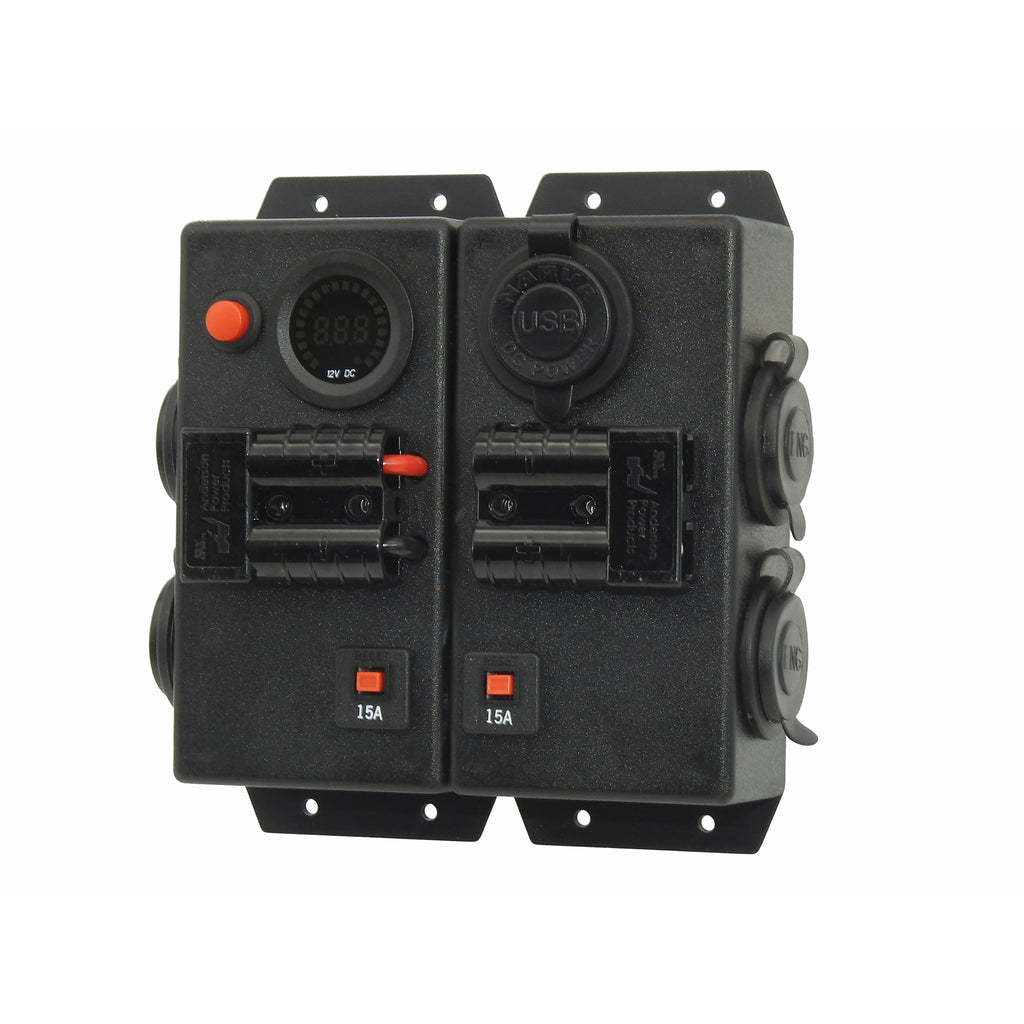

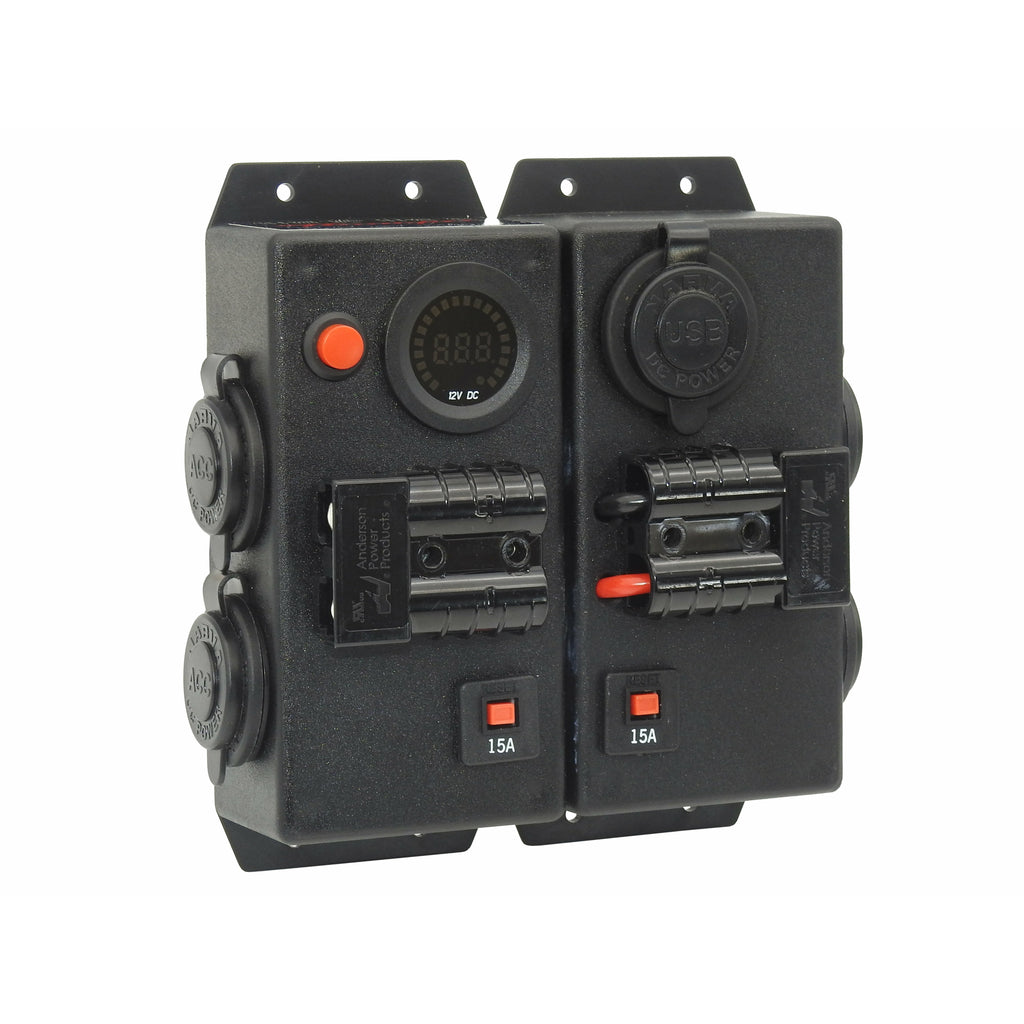

Specifications per outlet box:
- 2 x Marine Grade Cigarette sockets (12 Volt 16Amps / 24 Volt 8 Amps)
- 2 x Engel Fridge outlet socket (12 Volt and 24 Volt)
*** THIS SOCKET WILL NOT FIT CIGARETTE PLUGS ***
- 1 x DUAL USB outlet - rated to min of 2.4Amps
- 2 x Genuine 50Amp Anderson connector (not fused within box)
- 1 x Digital Volt meter - 12 Volt
This gauge will more accurately read the voltage of both Lithium and lead acid batteries
2 x 15Amp Manuel reset circuit breaker - connected to outlets sockets

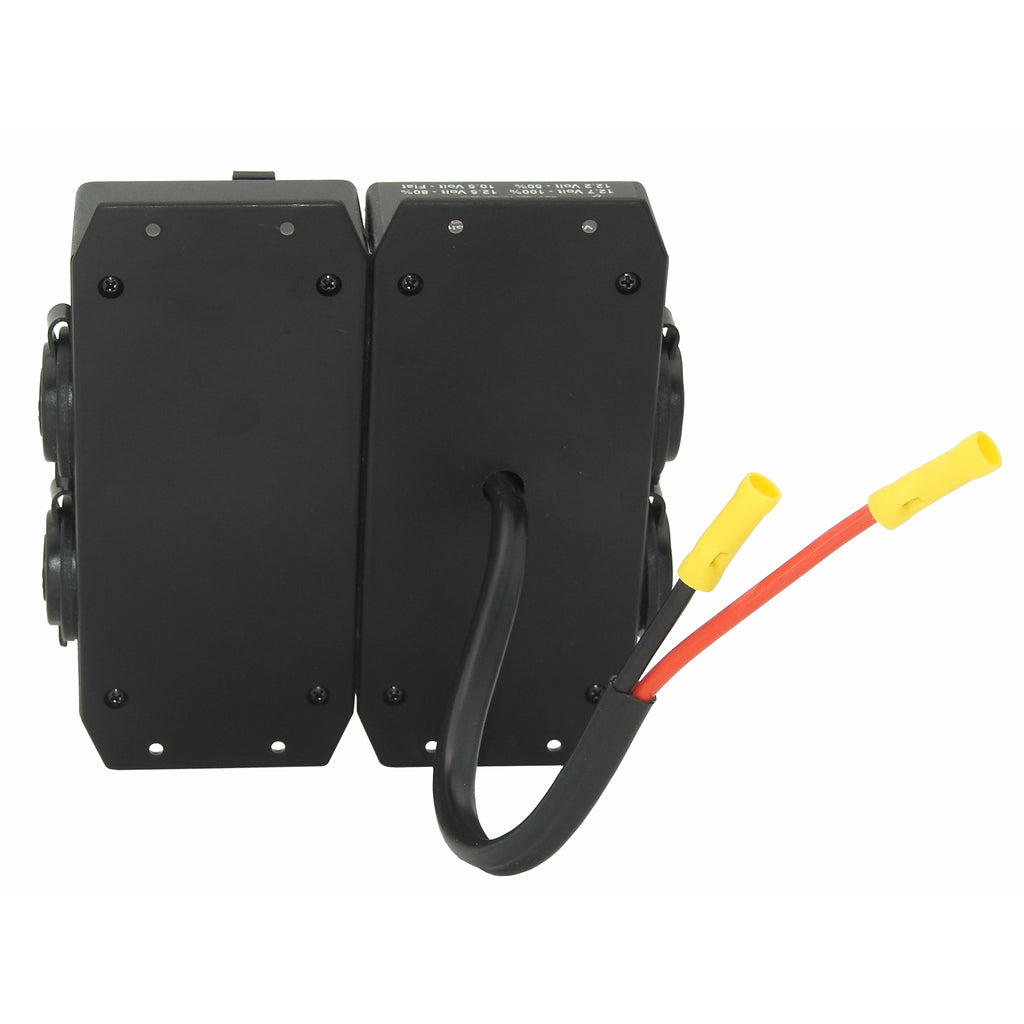

- 1 x approx. 250mm length 6mm Twin core cable with yellow crimp joiners
* Please note: It is recommended to install an in line fuse or circuit breaker in line of the positive cable feeding back to the battery. This box is not fused
Dimensions:
Width across face of both boxes - 135 mm
Depth including sockets - 55 mm
Height (including all terminals) - 160 mm
** All measurements include sockets **
2 Year Warranty
R.R.P $ 189.00 Each
