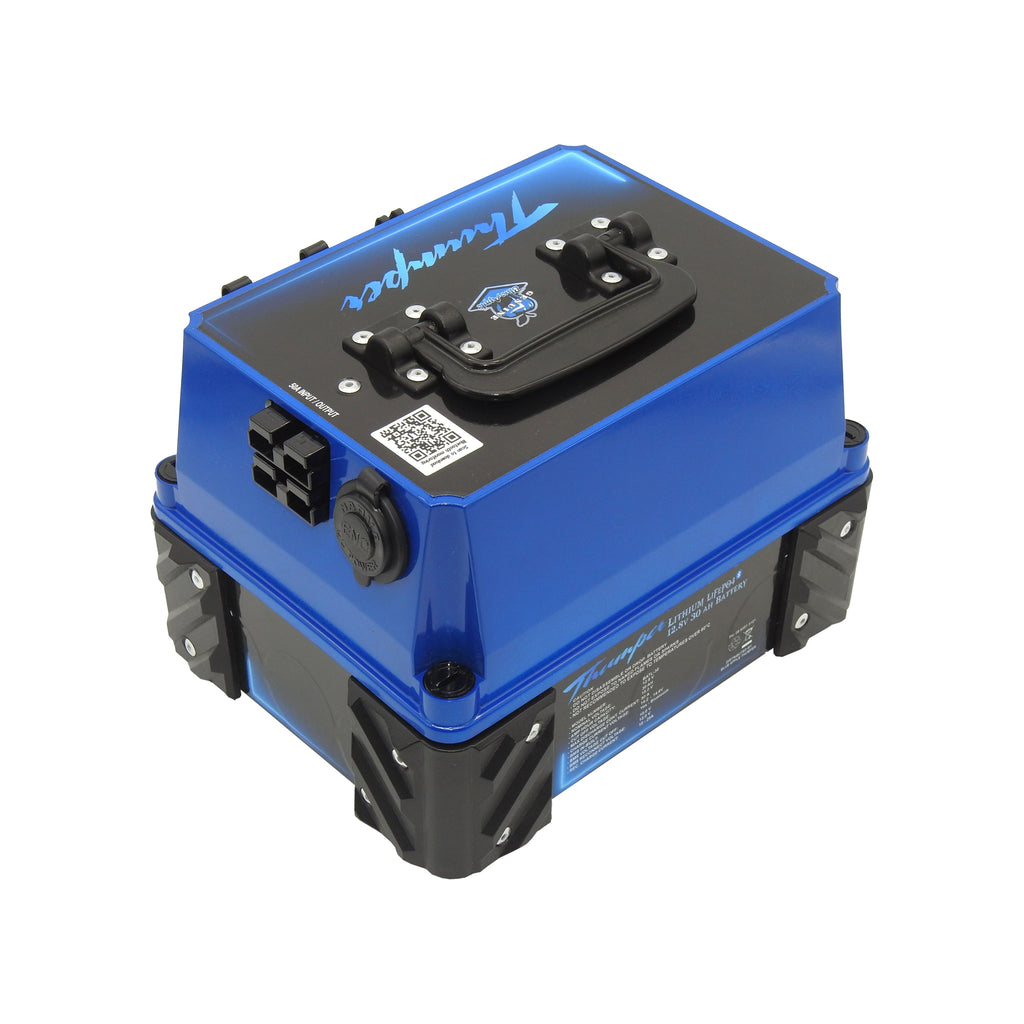

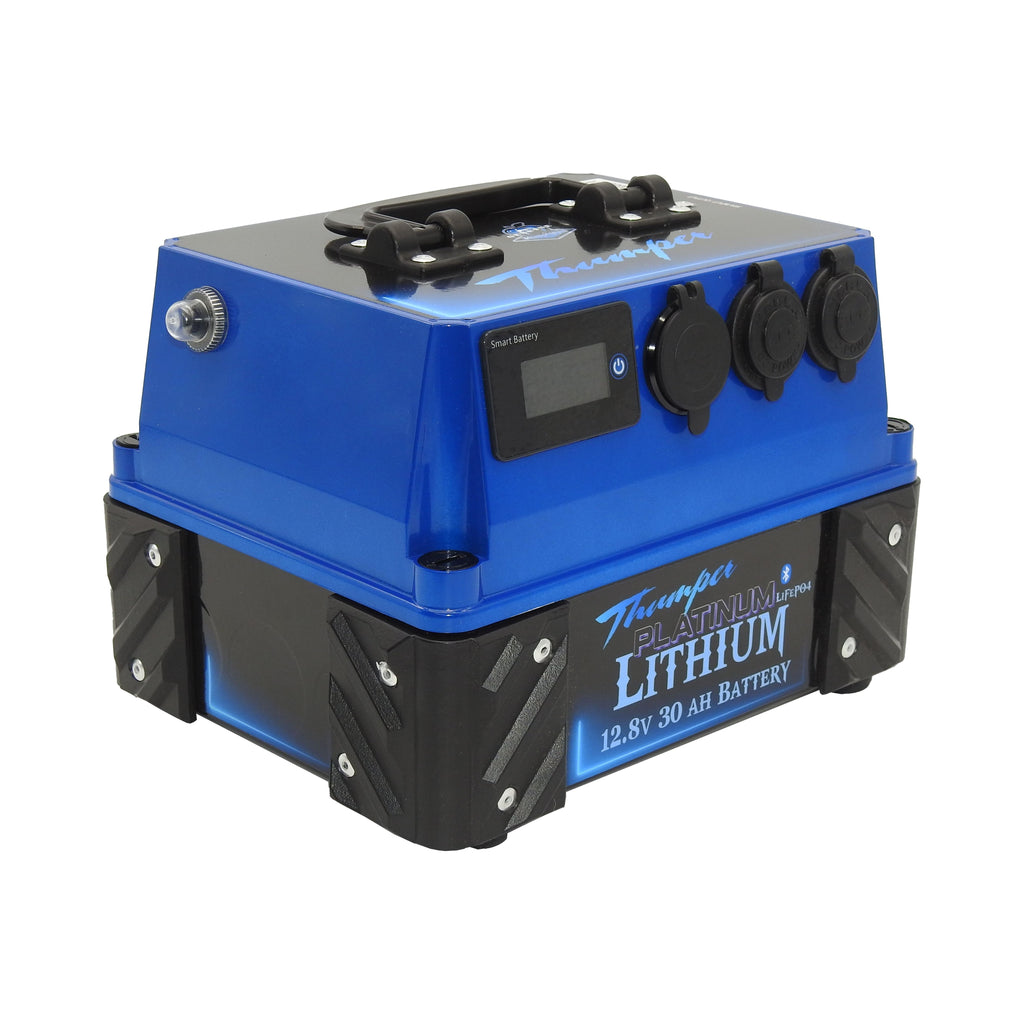

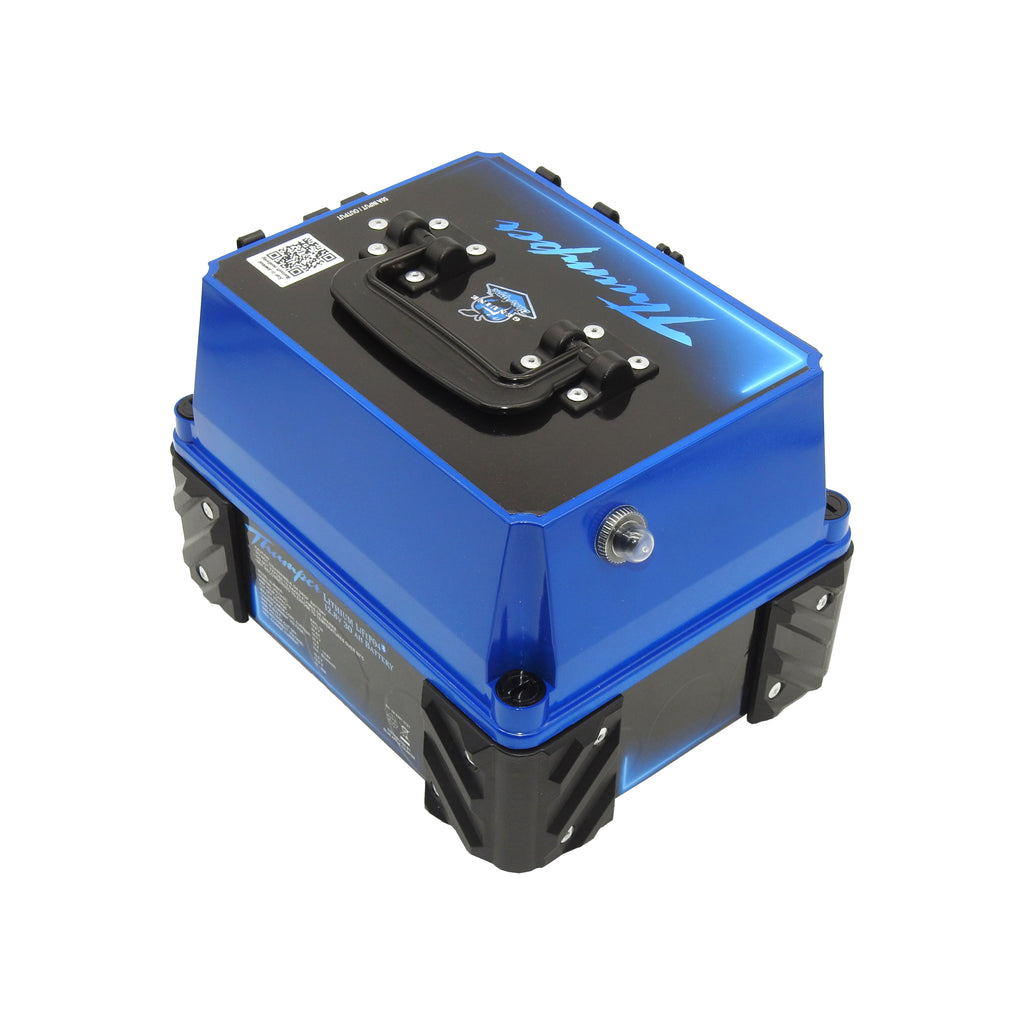

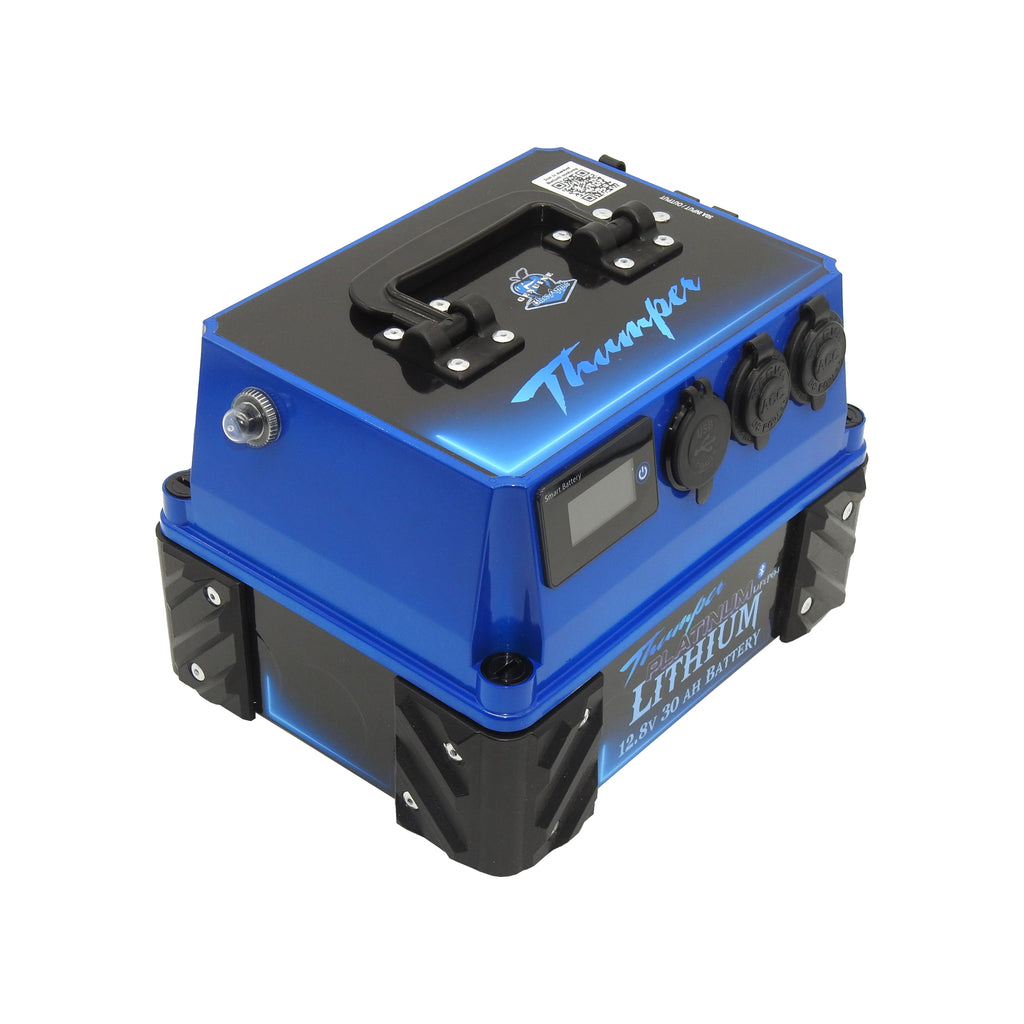

Thumper Lithium 30 AH Battery Pack

The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.

Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.

Equipped with an internal Bluetooth Battery Management System (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and internal short circuit protection.

The Thumper range of Lithium battery packs have a 100% usable capacity. At this point, the BMS system within the Thumper will shut down all power to the unit.  In order to reset the BMS, an input charge load must be connected to the battery.

Note: The BATL-30 Thumper Lithium is not suitable for Jump-Starting

_____________________________________

This as standard in this package:

Upgrade Options (select in drop down)

The Thumper Lithium 30 AH is the perfect option for the individual looking to run a 40-50Lt compressor driven fridge for 35+ hours.

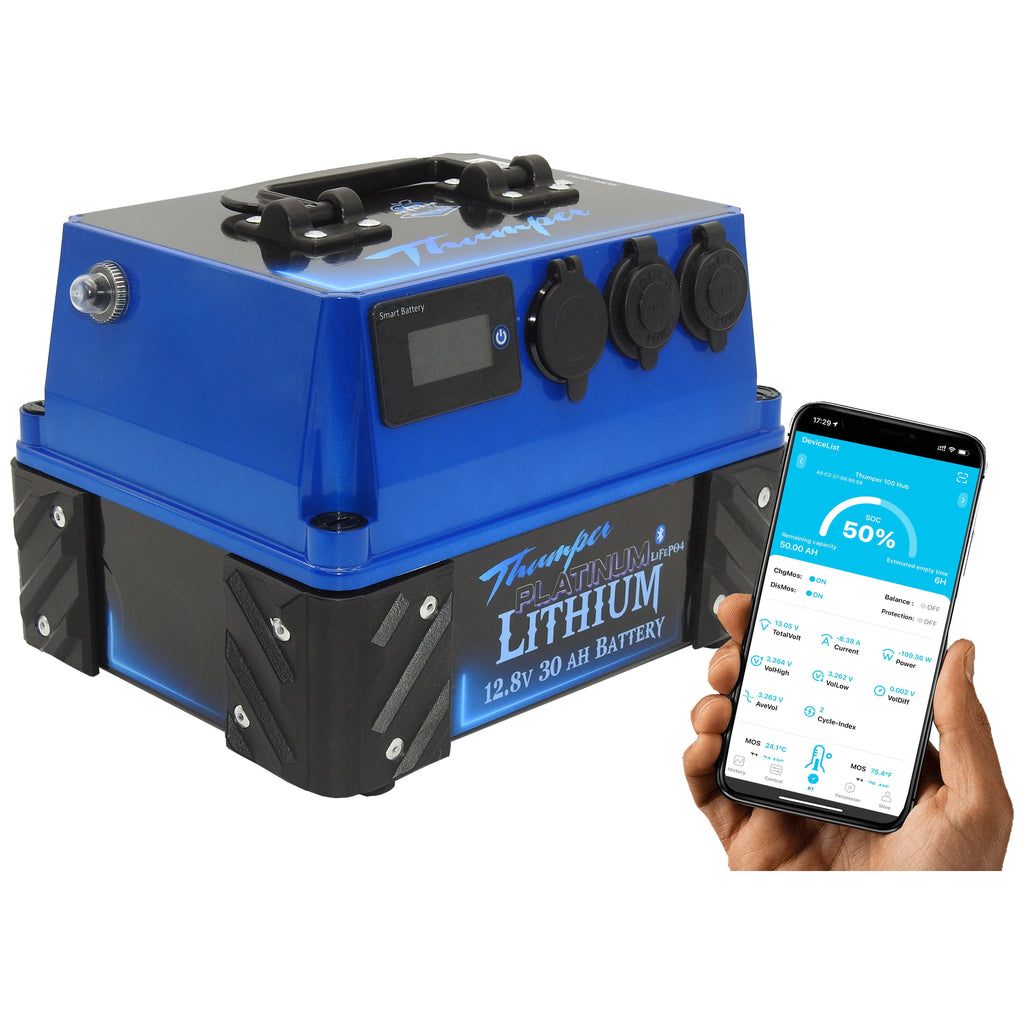

It has never been easier to understand your battery set up then with the Bluetooth APP

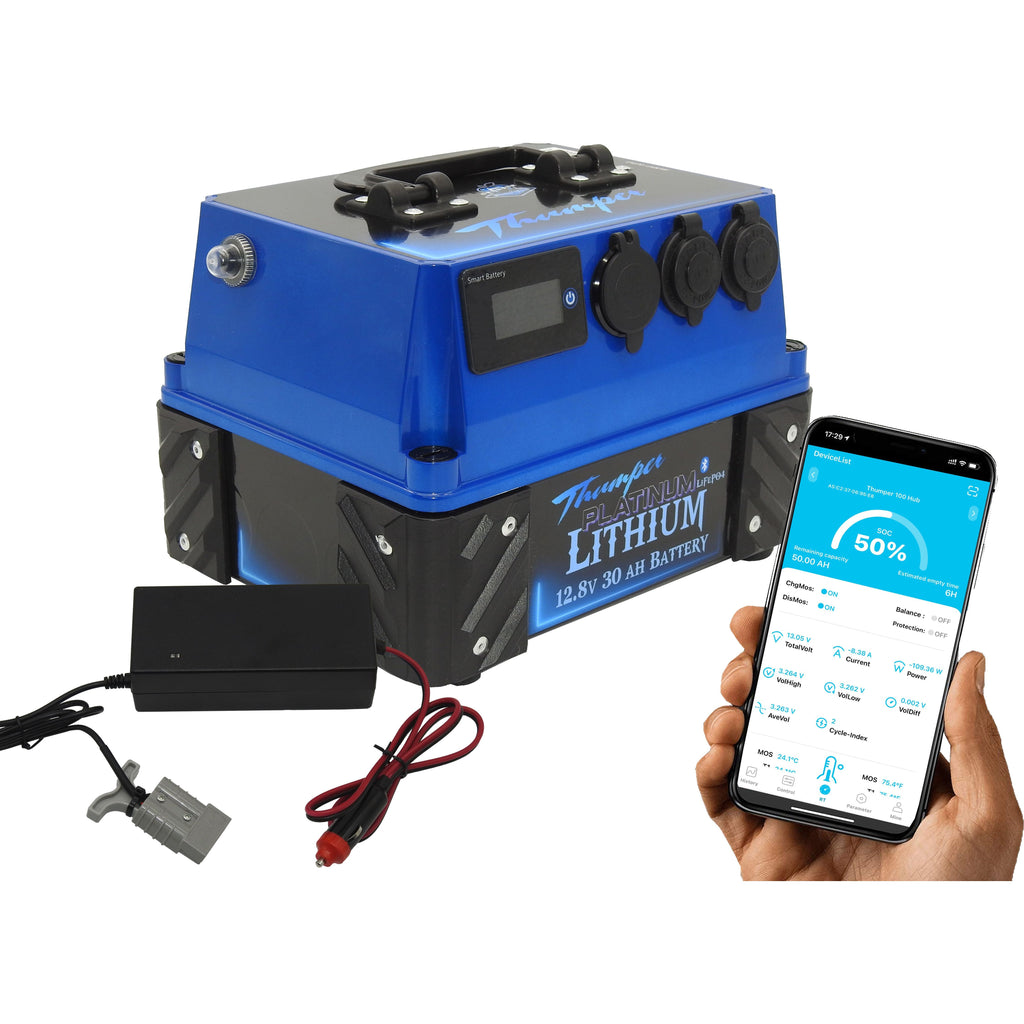

Bluetooth App - THUMPER BATTERIES

The Thumper App can be found in your APP store as a free download.

Note: Some features of the APP are only available with a passcode

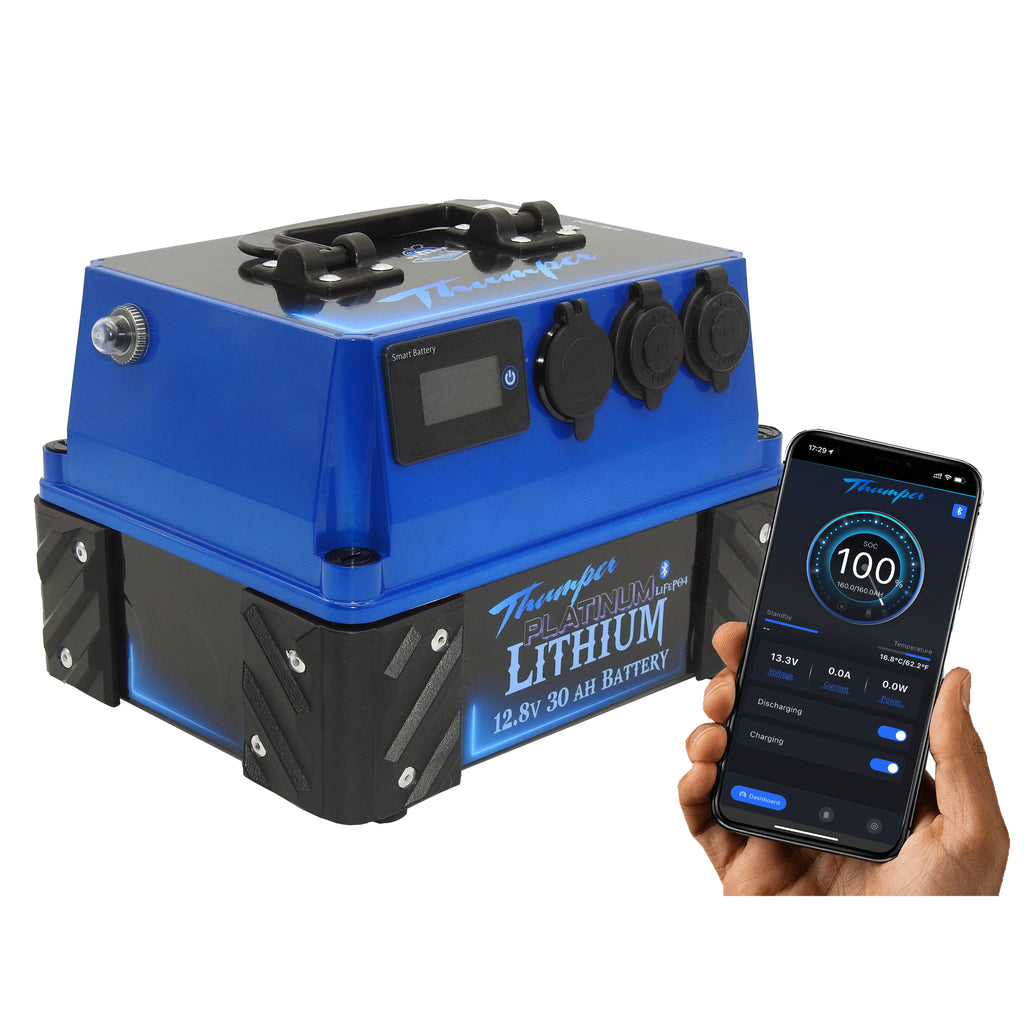

  Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

To turn either your charge or discharge loads off, simply switch the blue toggle (blue = ON) to instead show a blacked out toggle.

CHARGE SWITCH  - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.

DISCHARGE SWITCH  - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.

The unit is equipped with:

Charging:

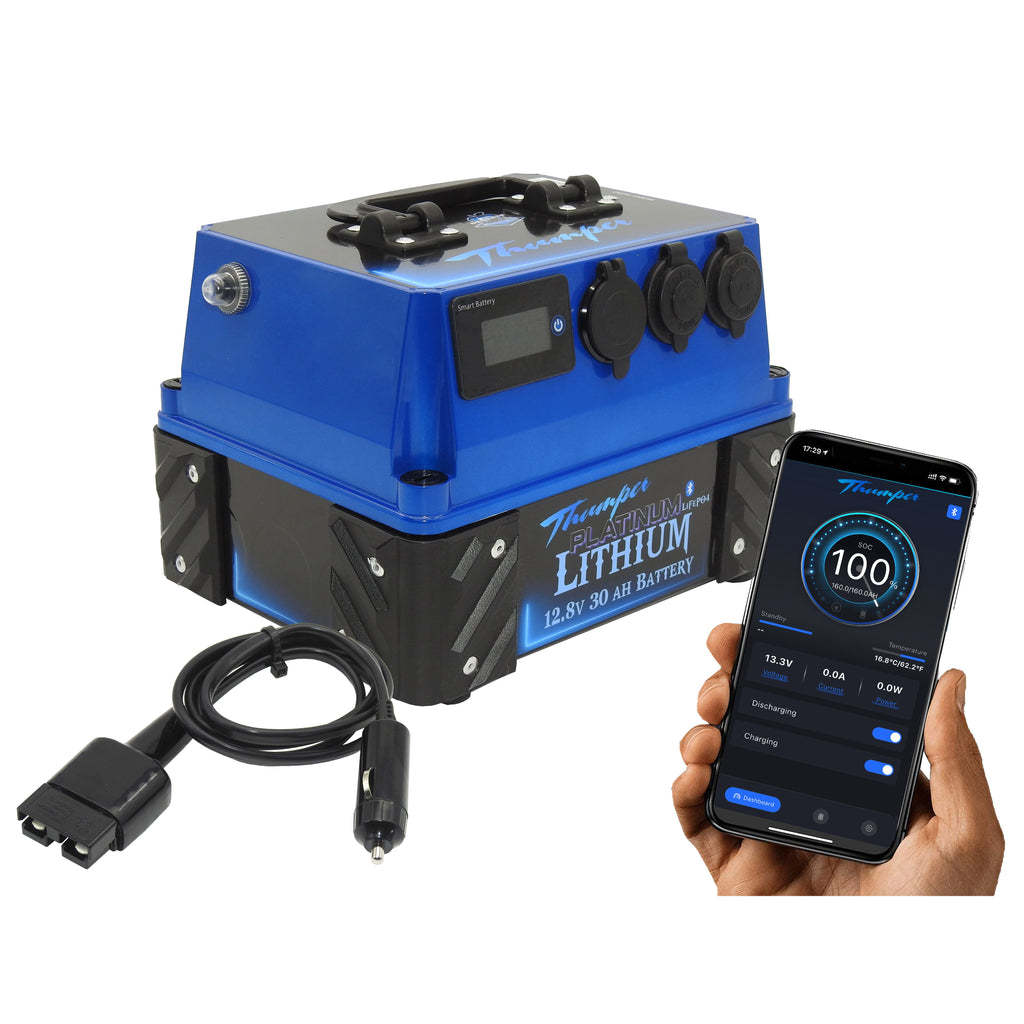

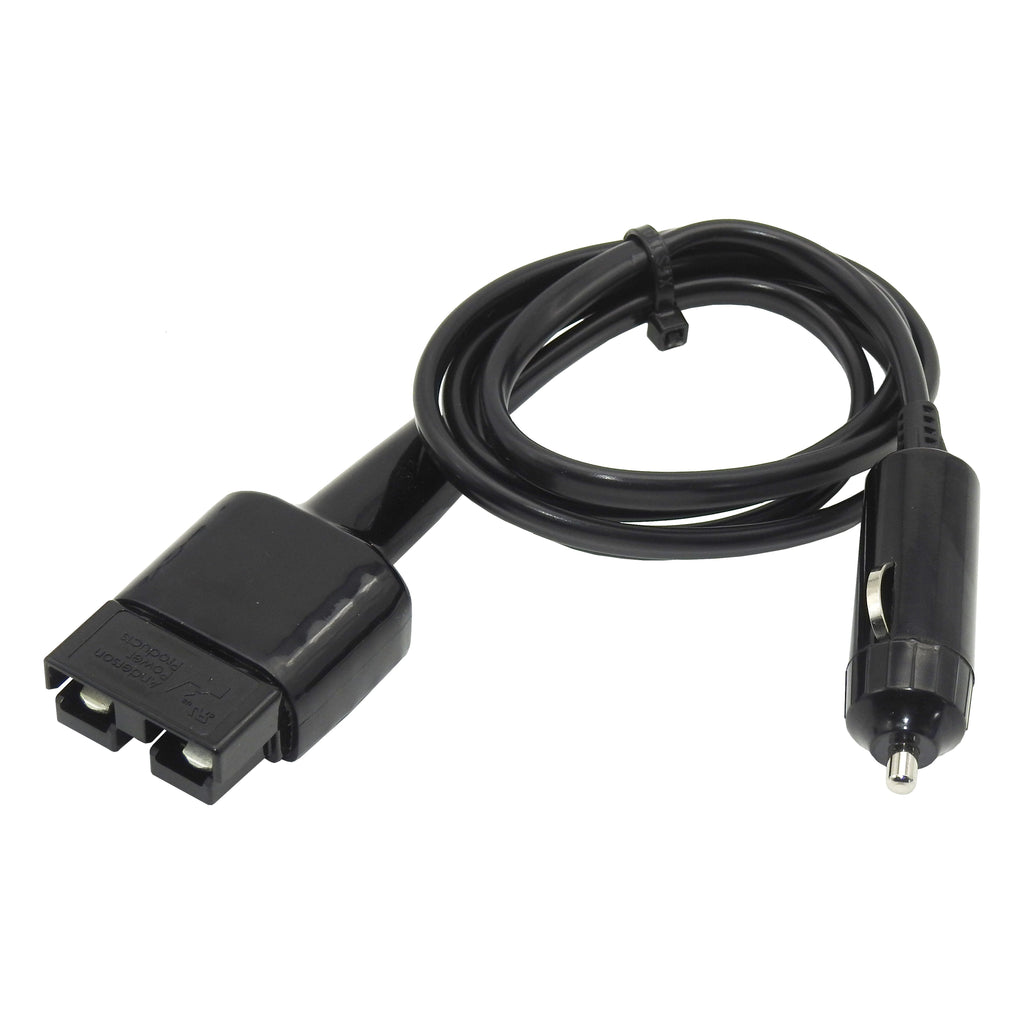

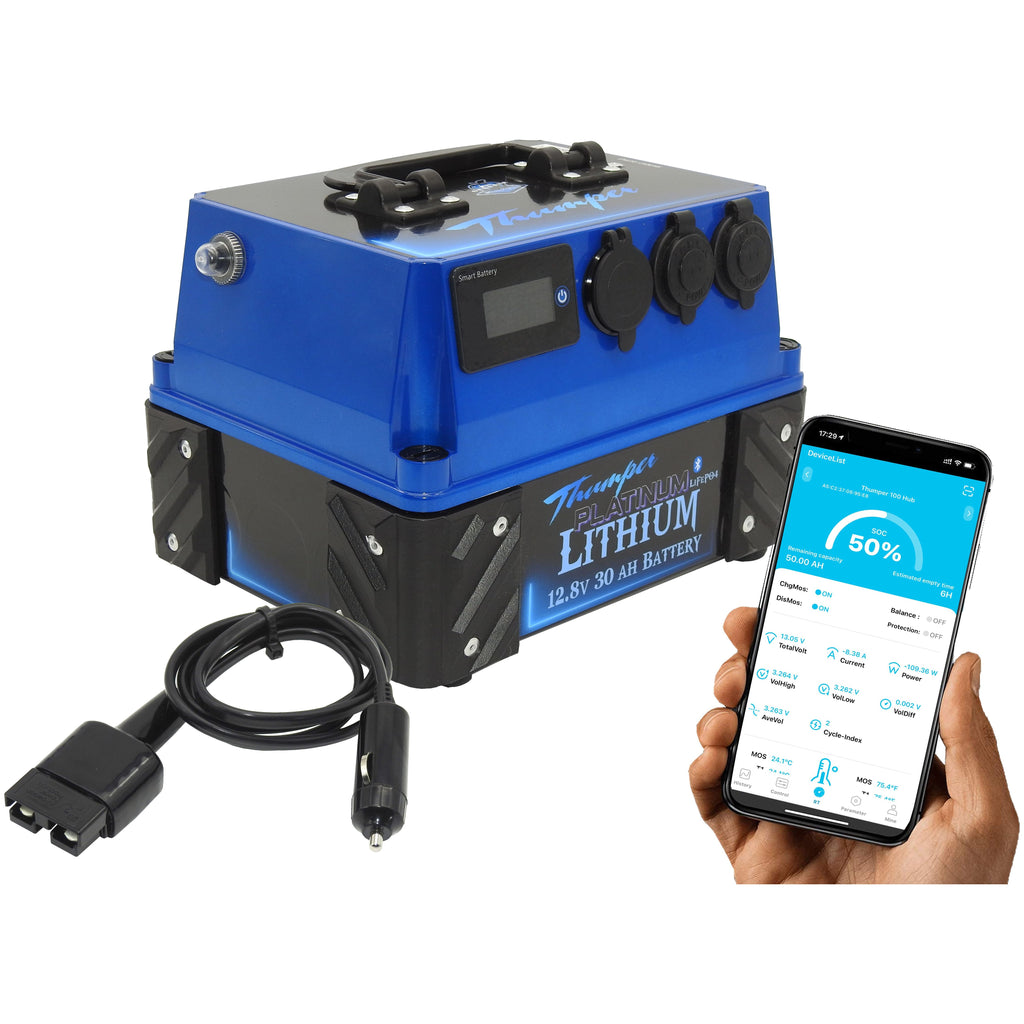

The Thumper 30 AH Lithium battery pack comes included with the TL-A-C1.2 1.2mt Anderson to cigarette charge lead. The TL-A-C1.2 will allow for a charge rate of approx. 5 – 8 Amps, depending on the vehicle’s alternator and wiring.

 This unique charging lead has been designed to allow the Thumper 30 AH to charge directly from the vehicle cigarette lighter socket. This lead must be used when charging via the cigarette socket in any vehicle as it will prevent reverse drain from occurring between the main start battery and the Thumper Lithium battery.

Available to purchase as an optional extra for the BATL-30 is:

• TUR-L complete vehicle wiring loom

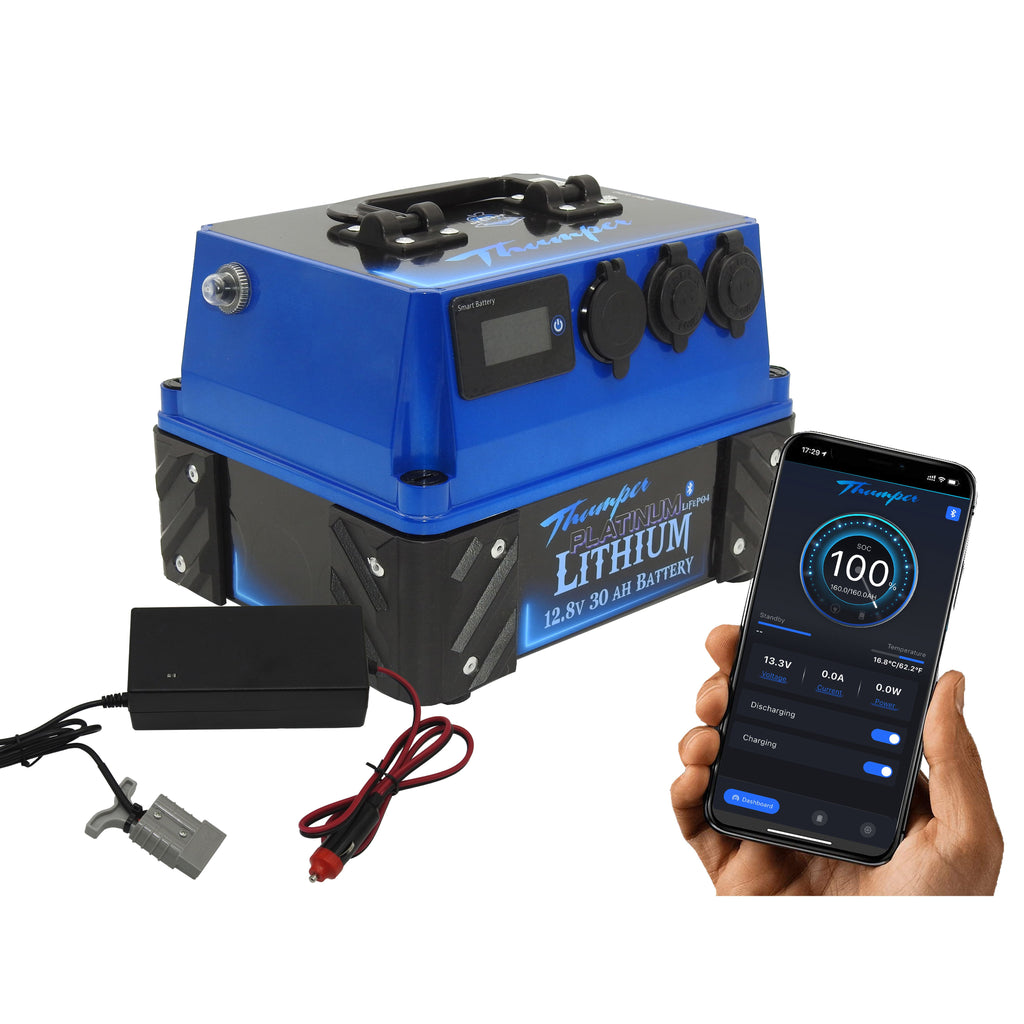

• In line DC battery Charger to increase charge from Cigarette socket - available in 5 Amps or 8 Amps
