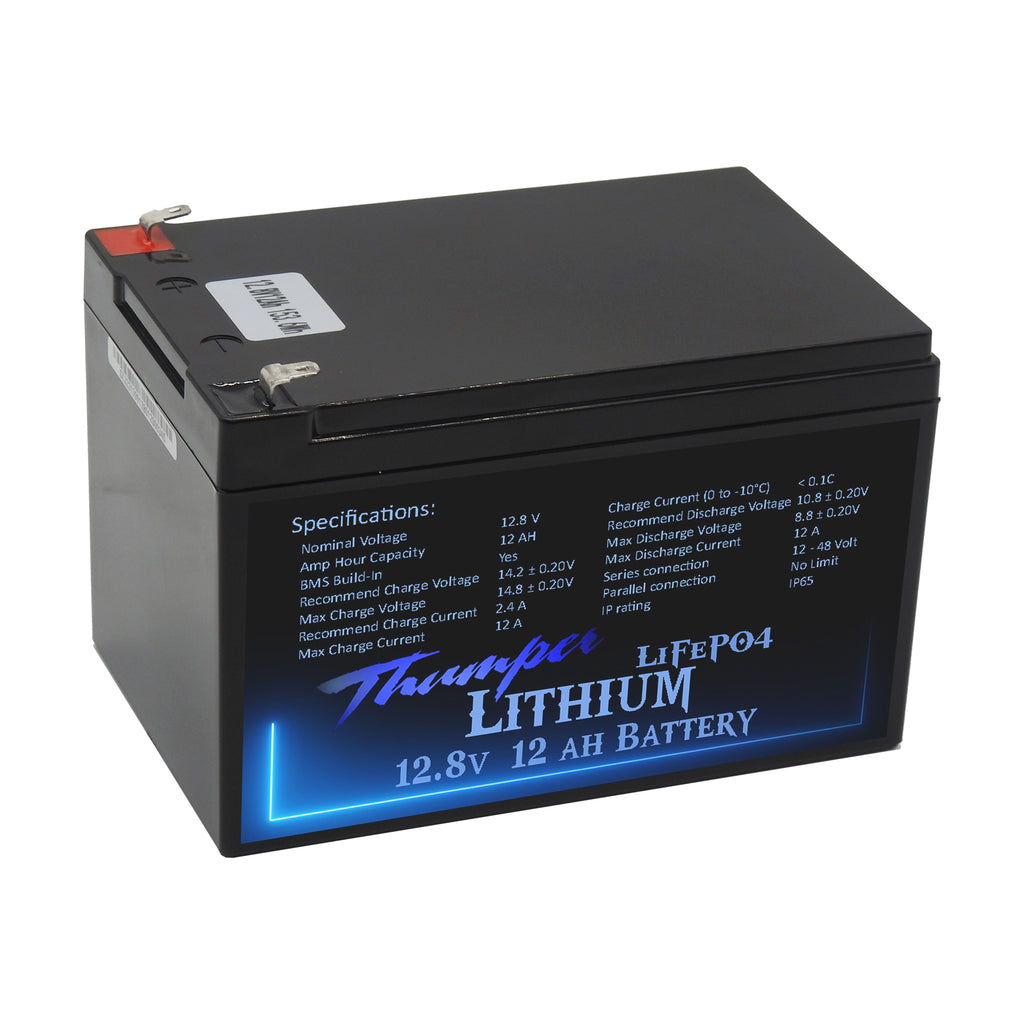

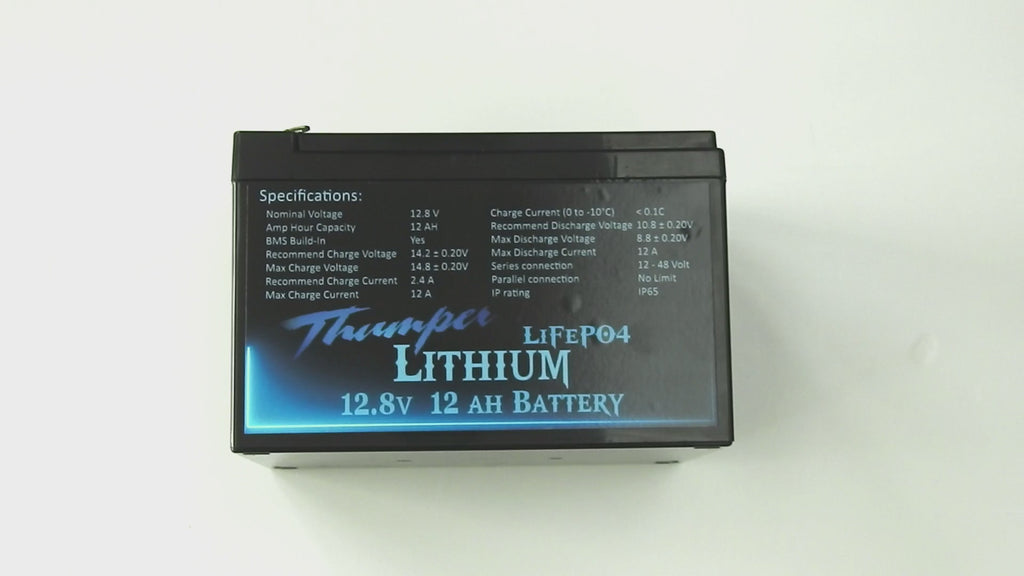

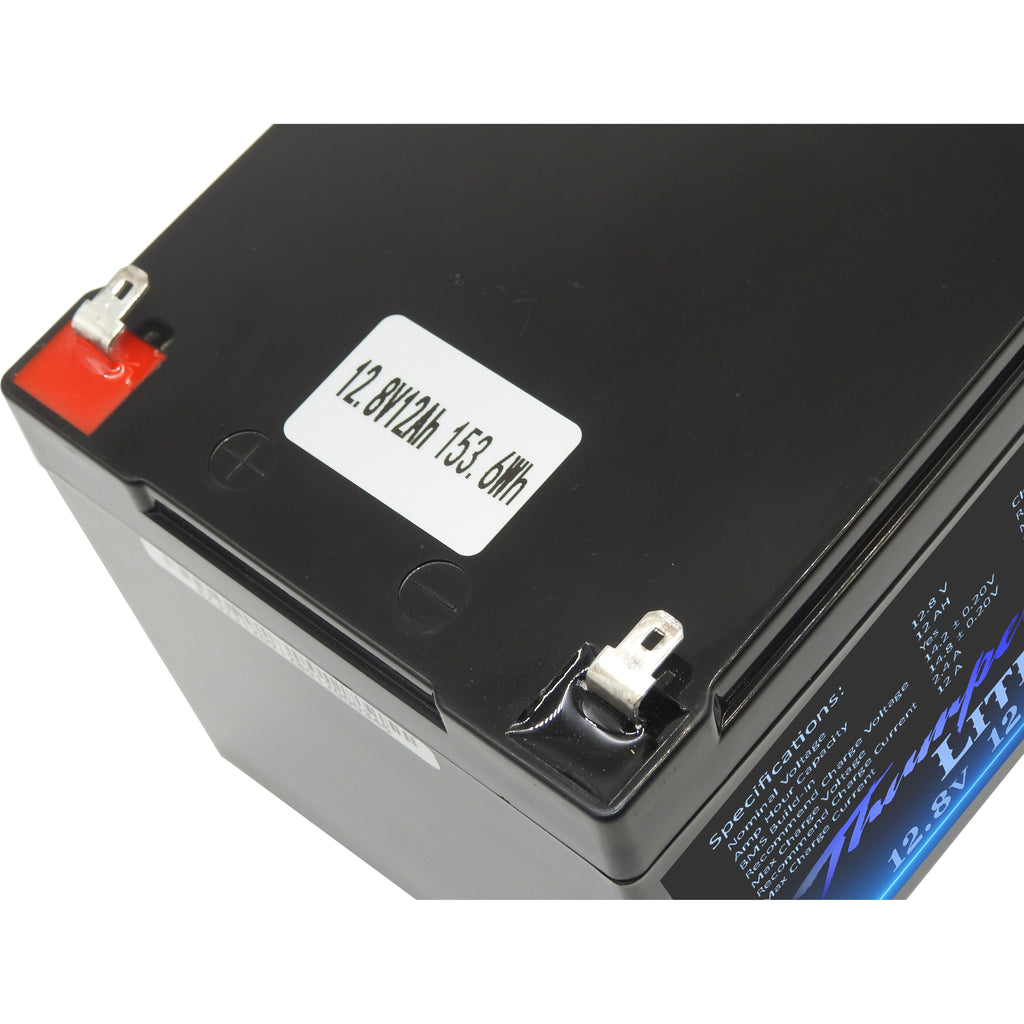

The Thumper 12 AH Lithium battery is the perfect choice for portable power. Extremely light weight with only weighing in at just over 1kg, the battery is ideal for camping power, UPS systems, running lighting and many other portable solutions.
The 12 AH has the ability to link unlimited parallel connections and will allow for a series link of up to 48 Volt MAX.
Back by a full 5 year manufacturing warranty, you can feel confident with the power of the Thumper Lithium.
Overview:
Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
Specifications:
Part No.
|
TL-12
|
Battery Type
|
LiFePO4
|
Nominal Voltage
|
12.8 V
|
Amp Hour Capacity
|
12 AH
|
Energy Density
|
153.6 Wh
|
Dimensions
|
151 x 98 x 101 mm
|
Weight
|
1.3 Kg
|
Case Material
|
ABS
|
BMS build-in
|
Yes
|
Recommend Charge Voltage
|
14.2±0.20V
|
Max Charge Voltage
|
14.8±0.20V |
| Recommend Charge Current |
2.4 A
|
Max Charge Current
|
12 A
|
Charge Current (0 to -10°C)
|
< 0.1C
|
Recommend Discharge Voltage
|
10.8±0.20V |
| MAX Discharge Voltage |
8.8±0.20V |
| MAX Discharge Current |
12 A
|
Pulse Discharge Current
|
30A / 3S
|
Efficiency - round trip
|
> 99.5%
|
Self Discharge per Month
|
< 3%
|
Max 4 - series connections
|
12-48V
|
Parallel connections
|
No Limit
|
Case IP rating
|
IP65
|
Shipping Classification
|
UN3480, CLASS9
|
Download Specification sheet HERE
