Custom Lithium vehicle specific battery to suit Next Gen Ford Rangers (All Models with or without Premium Pack)
No Drill solution for your Next Gen Ranger or Raptor.
This system does not require an additional battery tray as our battery is an all in one solution.
Please note that not all items in the images are supplied

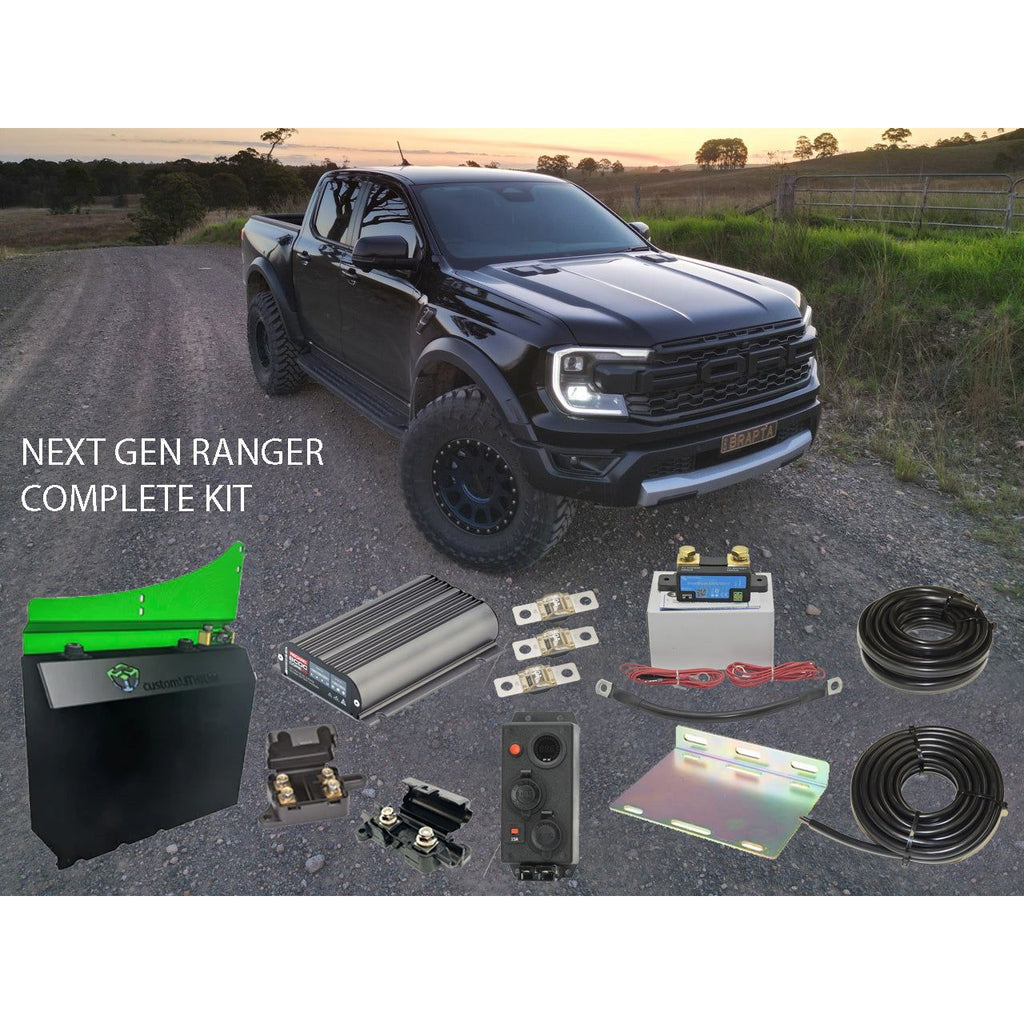

This package includes:
| 1 x Custom Lithium Battery 100/200AH capacity (please select in listing) |
1 x Victron Smart Shunt 500 Amp |
| 1 x Redarc Core BCDCN1225 DC charger |
1 x 32mm (2B&S) Earth lead to suit shunt |
| 1 x DC Mounting bracket |

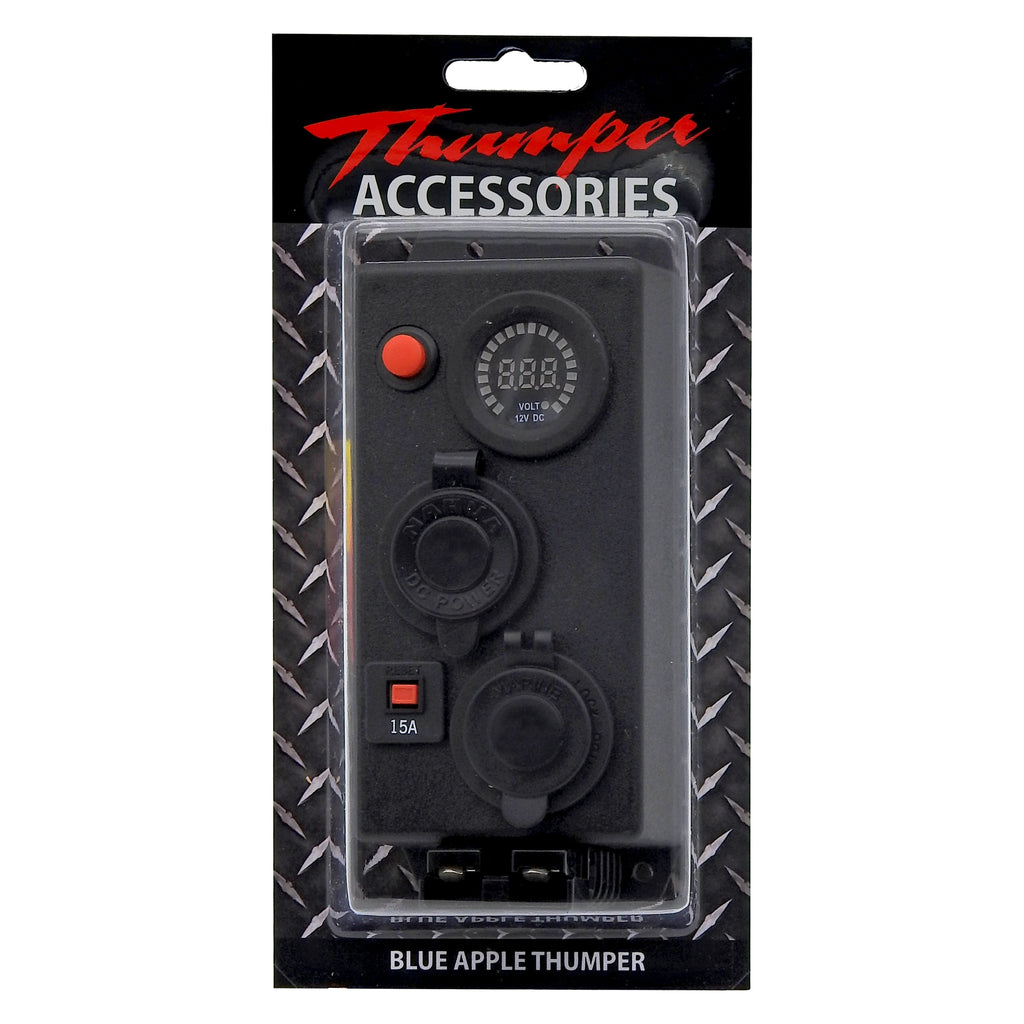

1 x Control Box Volt meter Cigarette / Dual USB and Anderson connector |
| 1 x Single Midi Fuse Holder - |
1 x 7mt length of 8mm Twin (8B&S) |
| 1 x Dual Midi Fuse Holder - |
1 x 6mt length of 6mm Twin (Control box connection) |
| 3 x 40 Amp Midi Fuses to suit |
1 x An assortment of Lugs and joiners |
*vehicle in display image not included
Custom Lithium information:
|
Continuous BMS AMPs |
|
|---|---|
| 100Ah model | 180 AMP |
| 200Ah model | 330 AMP |
|
Standard and Max Charge Current |
|
| 100Ah model | 50 Amps / 100 Amps |
| 150Ah model | 50 Amps / 100 Amps |
| 200Ah model | 100 Amps / 200 Amps |
|
Discharge Overcurrent Protection |
|
| 100Ah model | 850 Amps |
| 150Ah model | 850 Amps |
| 200Ah model | 950 Amps |
|
Operating Temp |
|
| -20°C – 60°C | |
|
Terminals |
|
| M10 terminals | |
|
Charge Voltage |
|
| 14.2v – 14.6v | |
|
Absorption/float |
|
| 13.4v – 13.6v | |
|
Cut off voltage |
|
| 10.5v |

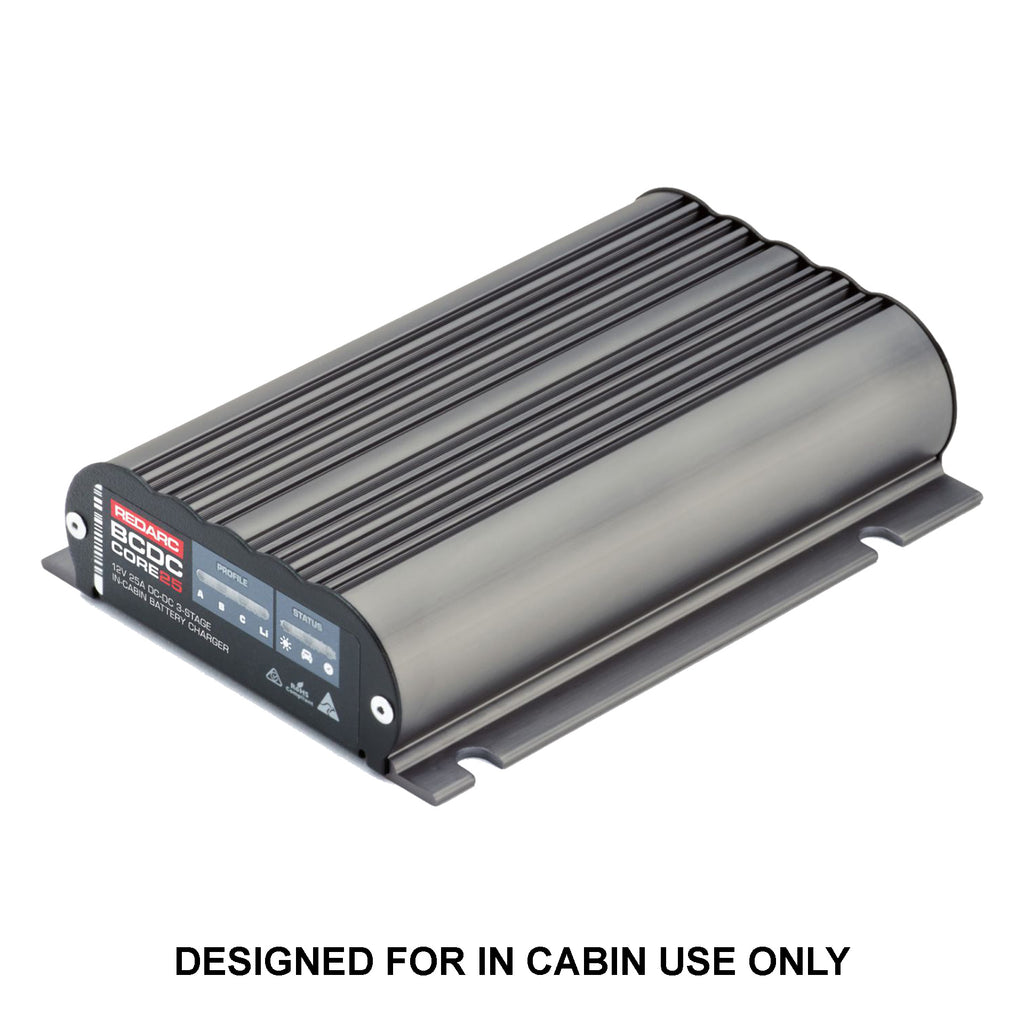

Redarc BCDC Core In-Cabin 25A DC Battery Charger is the next evolution of the legendary BCDC platform that has been powering off-grid adventures for over 10 years.
The Redarc BCDC Core In-Cabin 25A DC Battery Charger is the perfect DC to DC charging solution for in-cabin, canopy, or battery box setups where dust and weatherproofing isn’t required. Each BCDC Core features REDARC’s tried and tested dual input DC charging tech plus an MPPT solar regulator and Green Power Priority all in the familiar and compact BCDC form factor. These features allow the BCDC Core to efficiently charge from both the alternator and solar simultaneously, ensuring maximum charge capacity no matter the situation.
Looking for a DC-DC Charger for an under bonnet installation? The REDARC BCDC Classic range in 25amp, 40amp and 50amp models could be what you're looking for.
Max Charge Efficiency
The Redarc BCDC Core In-Cabin 25A DC Battery Charger features a Maximum Power Point Tracking (MPPT) solar regulator and 'Green Power Priority'. With these features the BCDC Core will charge from both solar and the alternator simultaneously, maximising its charge rate and minimising the load on your alternator, saving fuel.
Compact & Silent

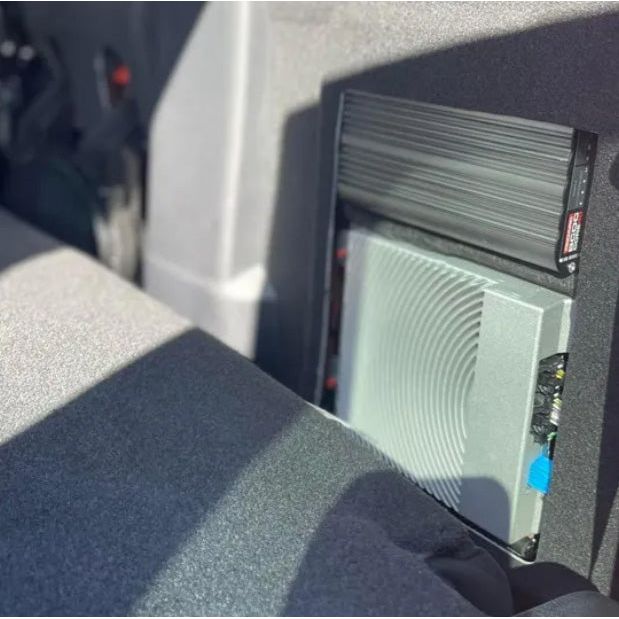

With no loud fans or relays and a small form factor, the BCDC Core can be tucked away, leaving room in the cabin for more important things. Don't ruin the look of your interior with bulky electronics. Hide it under the rear floor, behind a side panel or under the seats and make your power set up look like it was meant to be there.
Lithium Ready
With chemistry specific charging profiles, including lithium the BCDC Core ensures your batteries are ready for your next adventure. The award-winning technology in the BCDC Core has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.*
For most applications, the BCDC Core 25A is suitable for battery bank sizes of 60-200AH for AGM and lead acid and up to 100AH for lithium. Check the manufacturer’s data for your battery and ensure that the ‘Continuous Current Rating’ of the charger does not exceed the manufacturer’s recommended maximum charging current. For higher capacity needs of over 200AH, REDARC recommends the BCDC Core 40A.
*Large capacity battery banks may require a few cycles to fully charge.
Backed by the Best
The Redarc BCDC Core In-Cabin 25A DC Battery Charger is designed, tested and manufactured in Australia and is backed by our leading technical support and national REDNetwork certified installer network.
If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.
Features
- Suitable for in-cabin and canopy installations only
- Compact form factor
- Simultaneous DC and solar charging with Green Power Priority
- Maximises the performance and life of your auxiliary battery
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
Click here to view the product flyer
| Input Charge | Simultaneous vehicle and solar |
| Installation Type | In-cabin only |
| Input (Operating) Voltage | 9 - 32VDC |
| Output System Voltage | 12VDC |
| Maximum Charging Voltage | 15.3V |
| Output Current Rating (Cont.) | 25A |
| Input Fuse Rating | 40A |
| Output Fuse Rating | 40A |
| Type Approval | E-Mark |
| Warranty | 2 Years |
| Standby Current Draw | <8mA |
| Output Power | 375W |
| Width (mm) | 120 |
| Height (mm) | 37 |
| Length (mm) | 165 |
| Weight (kg) | 0.9 |
DC mounting Bracket:
Designed in house by Baxters and manufactured using 3mm Zinc plated steel. Providing a premium trade quality bracket combined with a professional looking fit. Baxters brackets to suit All BCDC chargers are the perfect fitting solution for your next job.

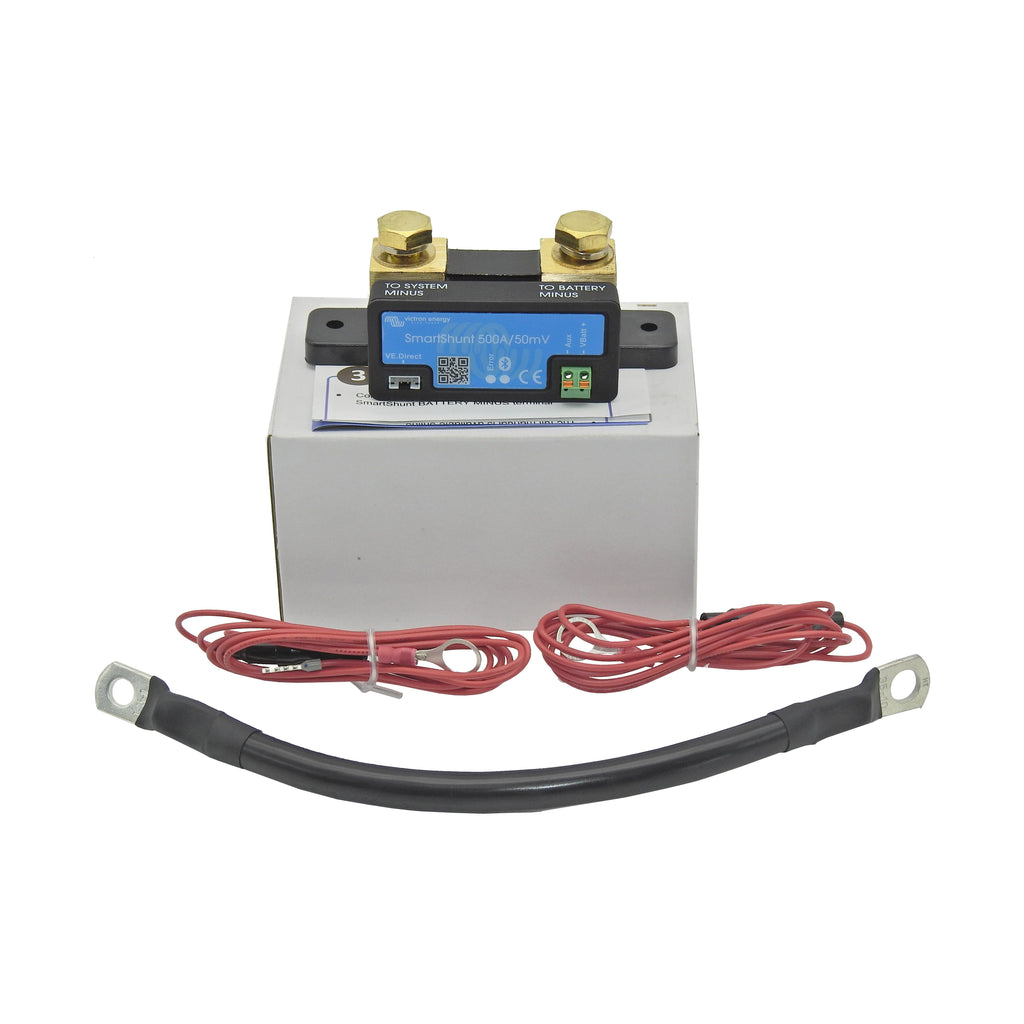

Victron Smart Shunt:
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
The SmartShunt is available in 500A. The 1000A and 2000A will follow later this year.
- 35sq Black - Rated to approx 250 - 300 Amps up to 2mt @ 30degrees
- Fitted with 1 x 8mm lug for connection to battery
- Fitted with 1 x 10mm lug for connection to smart Shunt
- approx. 250 - 260 mm in overall length* size will vary slightly
